Automat Home Series
Your barista.
At home.
AT05 / AT06 Family
AT05B
AT06B
AT202 · Integrated Fresh Milk
AT202
01 · The Home Series
Coffee at home.
Your way.
Two distinct platforms, built around different home coffee preferences.
AT05 / AT06 Family
One compact platform. Two distinctive designs.

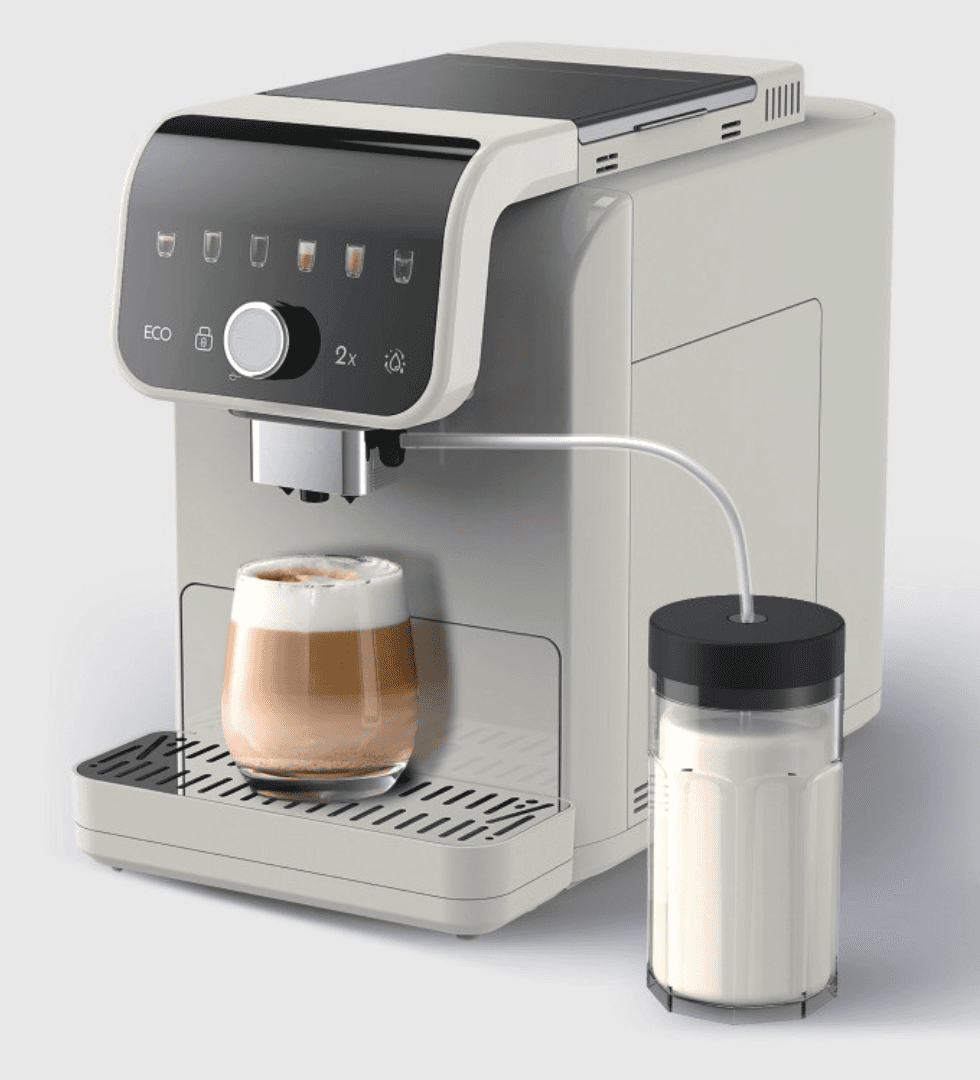

AT05B
Soft and residential

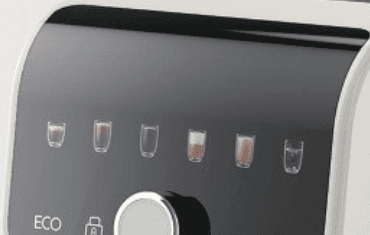

Rounded lines and a light finish, with the six drink buttons and a coffee-strength knob gathered on one clear front panel.
4 finishes shown in the Automat leaflet

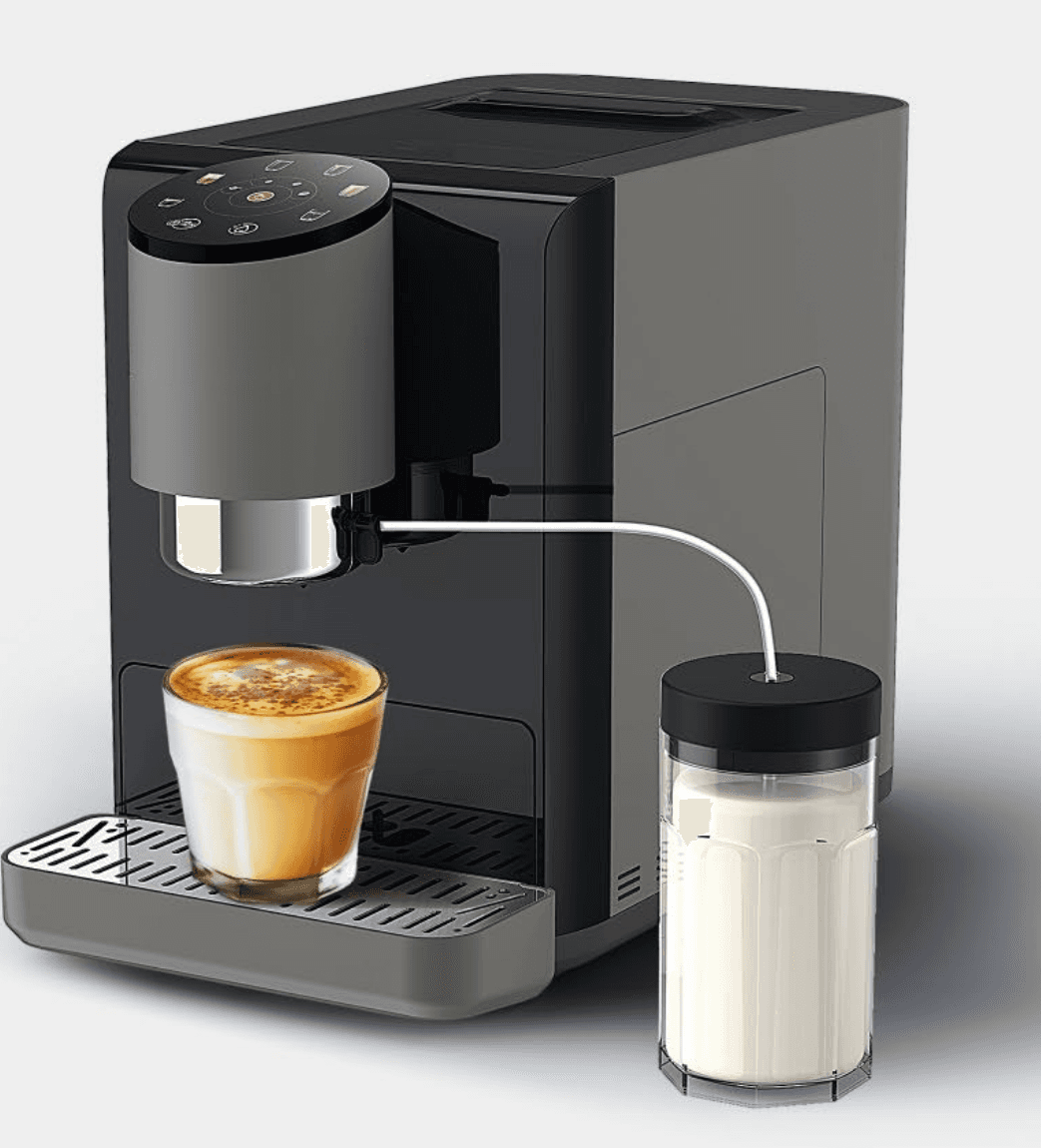

AT06B
Contemporary and dark

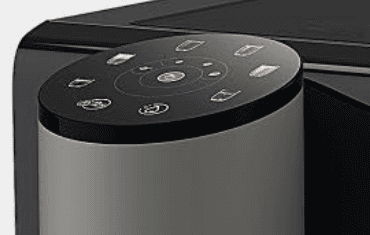

A darker, more architectural form, with its controls set into a round top panel above the coffee spout.
2 finishes shown in the Automat leaflet
AT202
A Home Series coffee machine with an integrated fresh-milk system.
AT202
Integrated fresh-milk system
A classic squared form in black and steel, with a 700 ml detachable milk jug beside the coffee spout for automatic milk foaming.
3 finishes shown in the AT202 source sheet
02 · From bean to cup
From whole bean
to your cup.
Every drink starts with whole beans, ground and brewed fresh inside the machine.
01
Whole beans
Whole beans from the machine’s bean hopper.
02
Ground
Ground in the built-in grinder.
03
Brewed
Brewed in the built-in brewer.
04
Frothed
Fresh milk, frothed by the machine.
05
Your cup
Ready at one touch.
6
one-touch drinks on AT05B and AT06B
03 · Coffee at one touch
Press once.
Then make it yours.
Adjustable coffee strength
A knob sets how strong your coffee is.
Fresh milk frothing
A built-in milk frother; the milk tank is optional.
Ground-coffee bypass
Brew from pre-ground coffee through the bypass.
Adjustable spout height
Set anywhere from 80 to 140 mm to suit your cup.
AT202 milk system
Automatic milk foaming, with a 700 ml detachable milk jug.
04 · Everyday home use
Made for
everyday mornings.
A compact footprint, a generous bean hopper and simple daily upkeep, so good coffee fits into ordinary days.
AT05B and AT06B
240 mm
Compact width for the kitchen counter
200 g
Bean hopper
1.6 L
Water tank
80–140 mm
Adjustable spout height
0.6 L
Drip tray
10 cakes
Used-grounds bin capacity
AT202
250 g
Bean hopper
1.7 L
Water tank
700 ml
Detachable milk jug
Automatic
Cleaning
05 · Smarter personal coffee
Optional · AT05B and AT06B
Your coffee,
remembered.
With the optional mobile app for AT05B and AT06B, connected over Bluetooth and Wi-Fi, you can order a drink from your phone, customise drinks and coffee settings, and keep preferences for more than 20 users.
Order from your phone
Start a drink from the app.
Customise drinks and settings
More beverage options than the six buttons.
Preferences for 20+ users
Everyone at home keeps their own settings.
Bluetooth & Wi-Fi
Optional connectivity for the mobile app.
06 · Choose your Home Series
Choose your platform.
Then choose your look.
AT05 / AT06 Family
One compact platform. Two distinctive designs.
AT05B
Soft and residential
20–30 cups/day
Recommended daily output
4 finishes shown
View AT05B details
AT06B
Contemporary and dark
20–30 cups/day
Recommended daily output
2 finishes shown
View AT06B details
Shared by AT05B and AT06B
64 mm special-steel flat-burr grinder
S14 brewer, 6–14 g
Fresh milk frother
6 one-touch drinks
200 g bean hopper · 1.6 L water tank
Optional app, Bluetooth & Wi-Fi
AT202
A Home Series coffee machine with an integrated fresh-milk system.
AT202
Integrated fresh-milk system
700 ml milk jug
Detachable, with automatic milk foaming
3 finishes shown
View AT202 details
07 · Technical specifications
AT05B and AT06B
One shared platform. Values apply to both models unless stated.
Dimensions
240 (W) × 360 (H) × 450 (D) mm
Net weight
10 kg
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
1600 W
Interface
Touch buttons, 6 drinks
Bean hopper
1 × 200 g
Bypass for ground coffee
Yes
Grinder
1 × SGH64, special-steel flat burrs
Brewer
S14, 6–14 g
Boiler
Thermal block, 1300 W
Water pump
1 × piston pump
Spout height
80–140 mm, adjustable
Waste bin
10 cakes
Drip tray
0.6 L
Milk frother / milk tank
Yes / Optional
Water supply
1.6 L water tank
Mobile app
Optional, Bluetooth & Wi-Fi
Daily output
20–30 cups/day
Certification marks
CCC · CB · CE
Model specifications
AT202
From the AT202 Home Series source sheet. Values not clearly stated there are not shown.
Brewer capacity
8–14 g
Bean hopper
250 g
Water tank
1.7 L
Milk jug
700 ml, detachable
Milk foaming
Automatic
Pump pressure
19 bar
Automatic cleaning
Yes
Voltage
AC 220–240 V / AC 110–120 V
Frequency
50/60 Hz
Rated power
1300 W
Automat Home Series
Bring the café ritual home.
Talk to Automat about the Home Series machine that suits your kitchen.
