01 · Design
Architectural lines.
Controls on top.

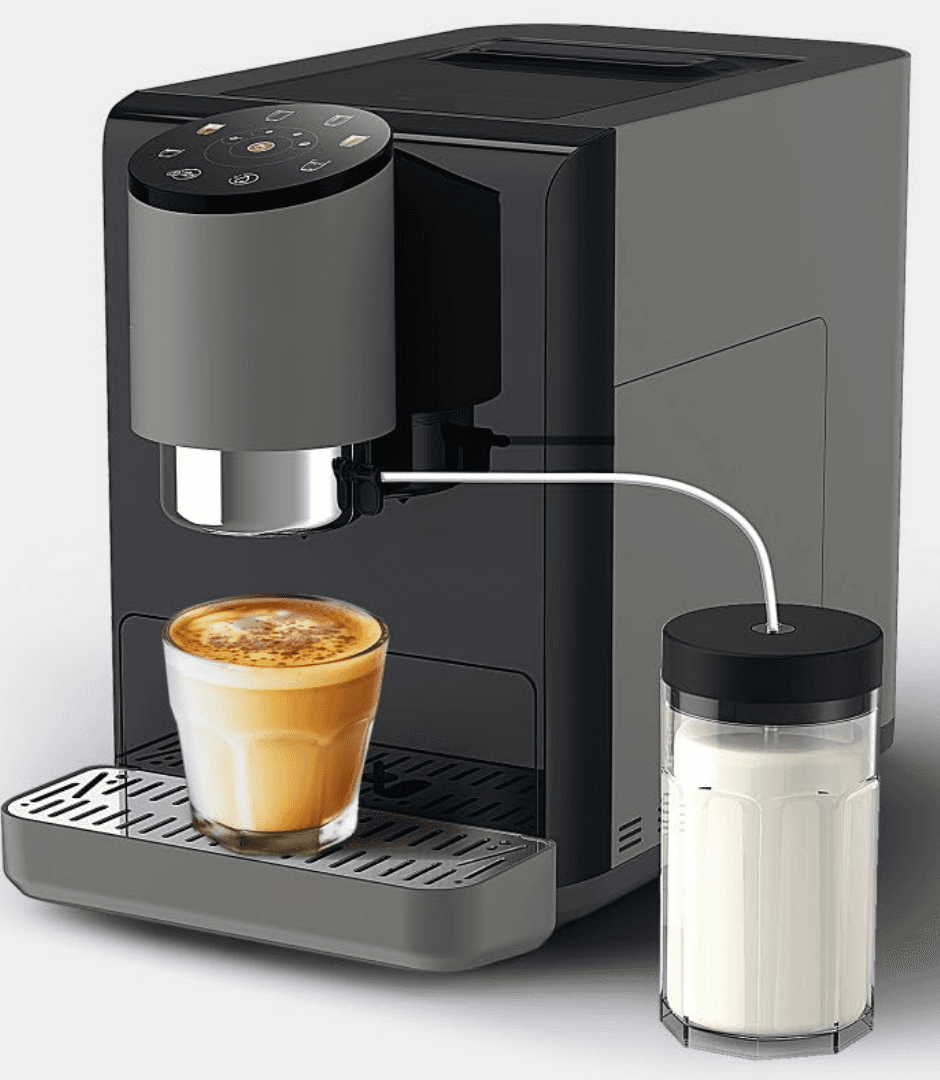

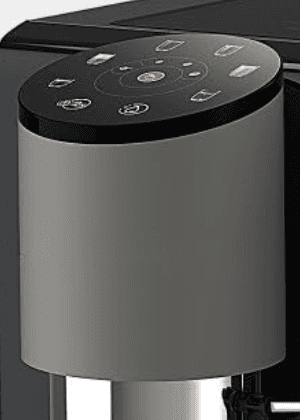

AT06B sets its controls into a round touch panel on top of a cylindrical column, above the coffee spout, on a darker, more architectural body.
Six one-touch drinks
Set into the round touch panel on top of the column.
Adjustable coffee strength
Set the strength to suit your taste.
Adjustable spout height
80–140 mm, to suit different cups.
02 · Fresh milk
Fresh milk,
frothed by the machine.

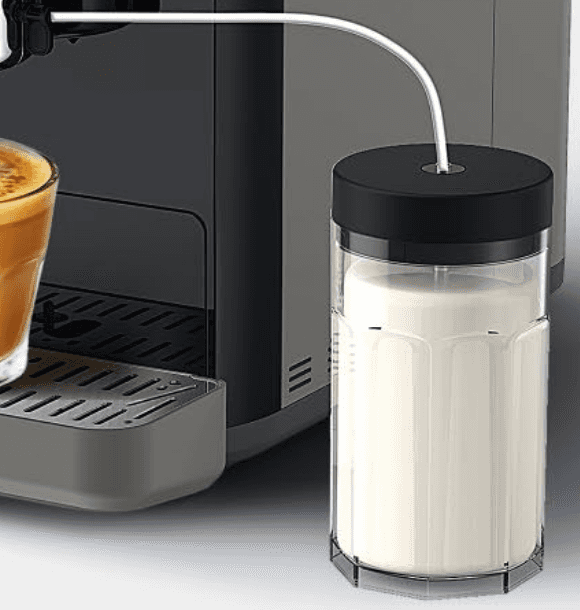

A milk frother is built into AT06B. The milk tank is optional.
Milk frother
Yes
Milk tank
Optional
03 · Coffee system
Whole beans,
ground for every cup.
The coffee system shared across the AT05 / AT06 Family.
64 mm
SGH64 special-steel flat burrs
6–14 g
S14 brewer dose range
1300 W
Thermal block
200 g
Bean hopper
Bypass
For ground coffee
1.6 L
Water tank
04 · Daily output & finishes
20–30
cups/day
Recommended daily output.
2 finishes shown
Column colours as shown in the Automat AT06B leaflet.
05 · Optional app
Optional mobile app · Bluetooth & Wi‑Fi
Order drinks and adjust drink and coffee settings from your phone.
Bluetooth
Wi-Fi
06 · Technical specifications
AT06B at a glance.
From the Automat AT06B leaflet.
Daily output
20–30 cups/day
Dimensions (W × H × D)
240 × 360 × 450 mm
Net weight
10 kg
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
1600 W
Interface
Touch buttons, 6 drinks
Bean hopper
200 g
Bypass for ground coffee
Yes
Grinder
64 mm special-steel flat burrs
Brewer
S14, 6–14 g
Boiler
Thermal block, 1300 W
Water pump
Piston pump
Spout height
80–140 mm
Waste bin
10 cakes
Drip tray
0.6 L
Water tank
1.6 L
Milk frother
Yes
Milk tank
Optional
Mobile app
Optional, Bluetooth & Wi-Fi
Finishes shown
2
AT06B · AT05 / AT06 Family
Your personal barista, simplified.
Talk to Automat about AT06B.
