01 · Design
Soft lines.
Simple controls.

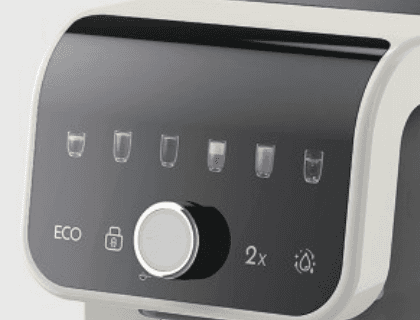

AT05B pairs a rounded, light body with a sloped front panel. Six drink buttons sit in a row above a central knob for coffee strength.
Six one-touch drinks
Six drink buttons across the front panel.
Coffee strength knob
A central knob adjusts coffee strength.

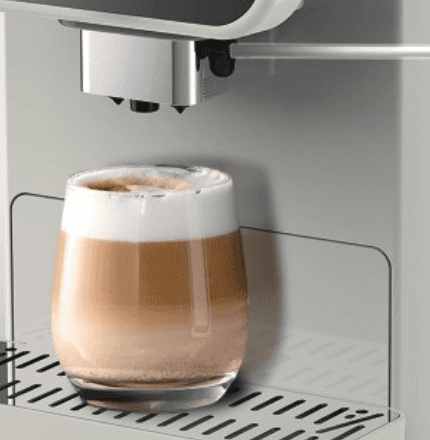

Adjustable spout height
80–140 mm, to suit different cups.
02 · Fresh milk
Fresh milk,
frothed by the machine.

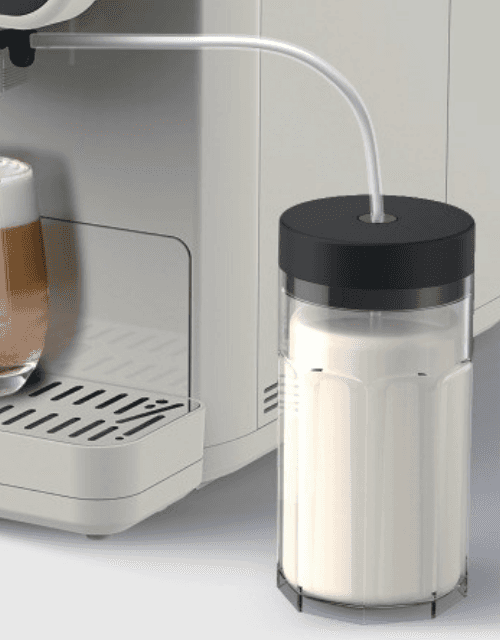

A milk frother is built into AT05B. The milk tank is optional.
Milk frother
Yes
Milk tank
Optional
03 · Coffee system
Whole beans,
ground for every cup.
The coffee system shared across the AT05 / AT06 Family.
64 mm
SGH64 special-steel flat burrs
6–14 g
S14 brewer dose range
1300 W
Thermal block
200 g
Bean hopper
Bypass
For ground coffee
1.6 L
Water tank
04 · Daily output & finishes
20–30
cups/day
Recommended daily output.
4 finishes shown
As shown in the Automat AT05B leaflet.
05 · Optional app
Optional mobile app · Bluetooth & Wi‑Fi
Order drinks and adjust drink and coffee settings from your phone.
Bluetooth
Wi-Fi
06 · Technical specifications
AT05B at a glance.
From the Automat AT05B leaflet.
Daily output
20–30 cups/day
Dimensions (W × H × D)
240 × 360 × 450 mm
Net weight
10 kg
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
1600 W
Interface
Touch buttons, 6 drinks
Bean hopper
200 g
Bypass for ground coffee
Yes
Grinder
64 mm special-steel flat burrs
Brewer
S14, 6–14 g
Boiler
Thermal block, 1300 W
Water pump
Piston pump
Spout height
80–140 mm
Waste bin
10 cakes
Drip tray
0.6 L
Water tank
1.6 L
Milk frother
Yes
Milk tank
Optional
Mobile app
Optional, Bluetooth & Wi-Fi
Finishes shown
4
AT05B · AT05 / AT06 Family
Enjoy barista coffee, at home.
Talk to Automat about AT05B.
