High-volume · Commercial coffee
O Series
All-in-One Bean-to-Cup Coffee Machine
Bean-to-cup coffee with fresh milk or powder ingredients, in three configurations, chosen on a 10.1-inch touchscreen.
200 cups/day
Recommended daily output
3
Configurations
10.1-inch
Touchscreen
Cold Milk Foam
Hot & cold fresh-milk foam
O Series · Machine Gallery
O Series,
in profile.

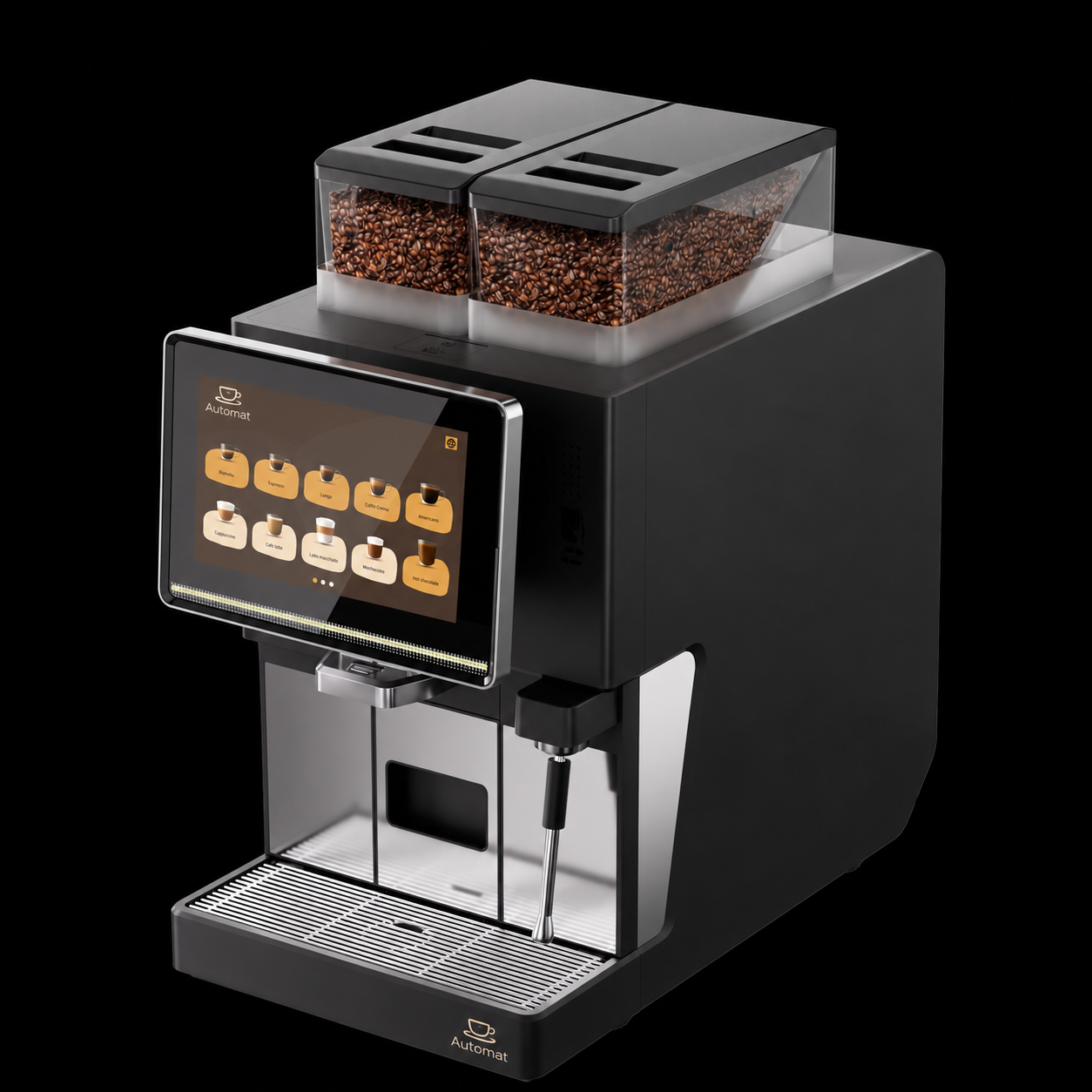

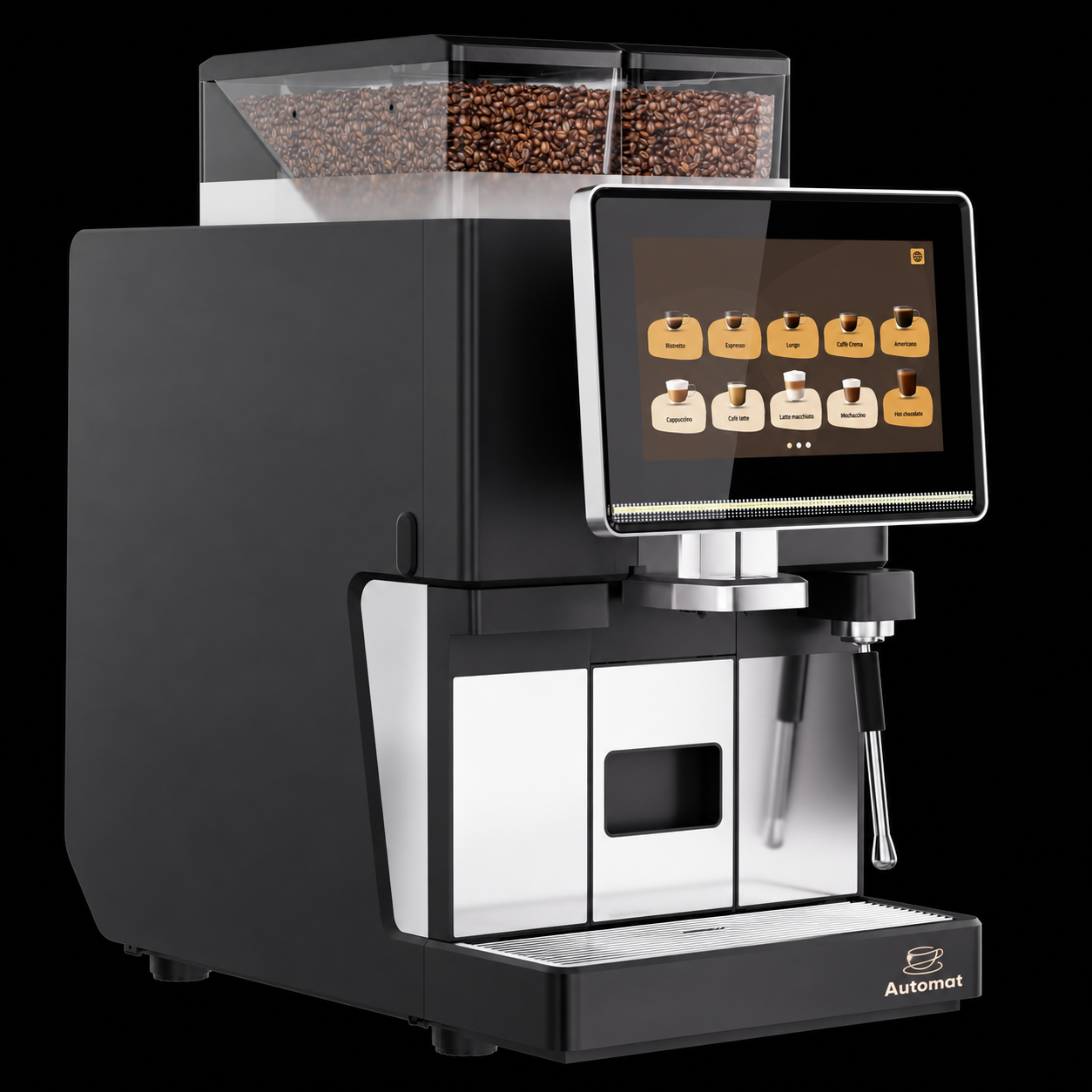

Three-quarter view

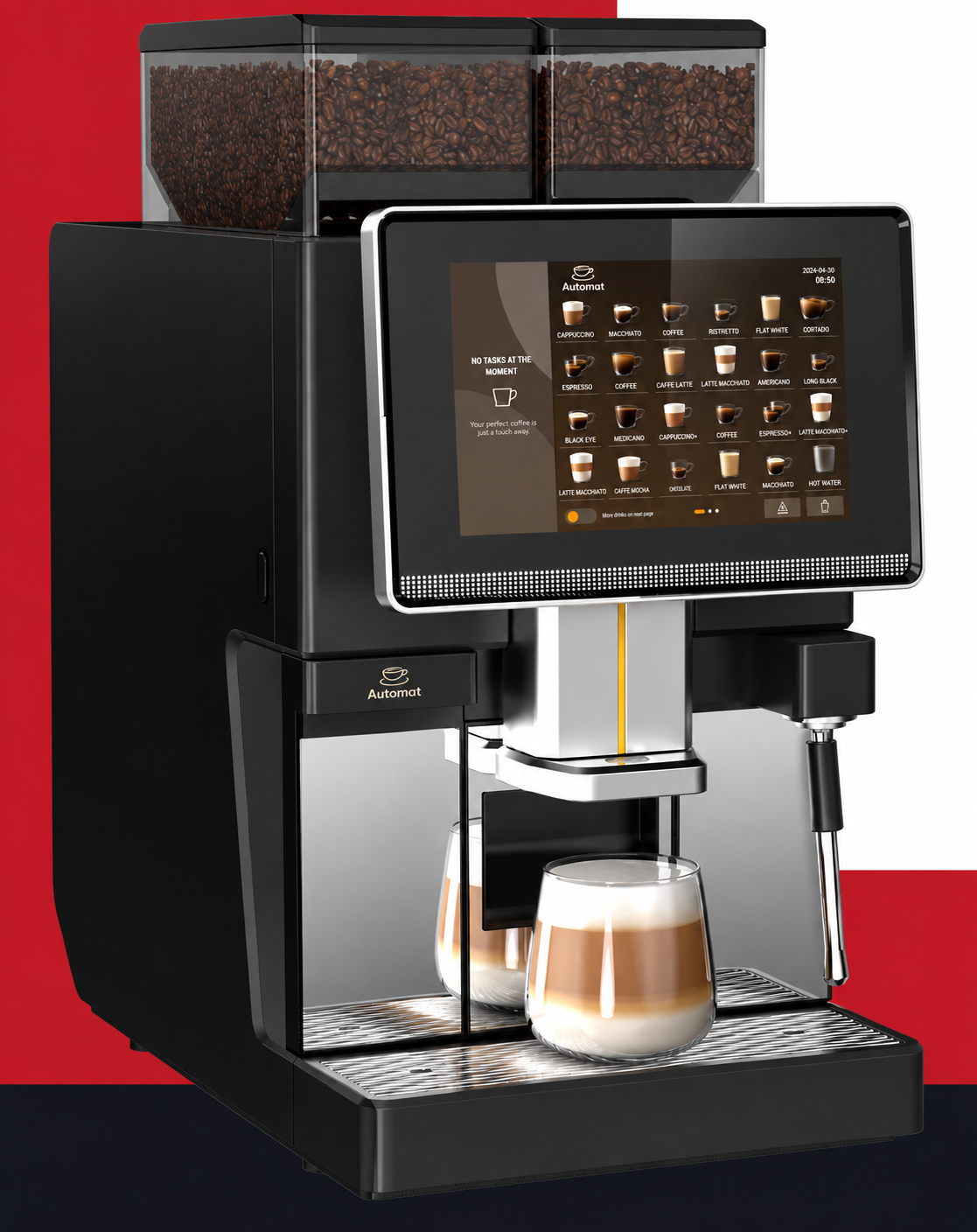

Front & beverage view
Machine profile

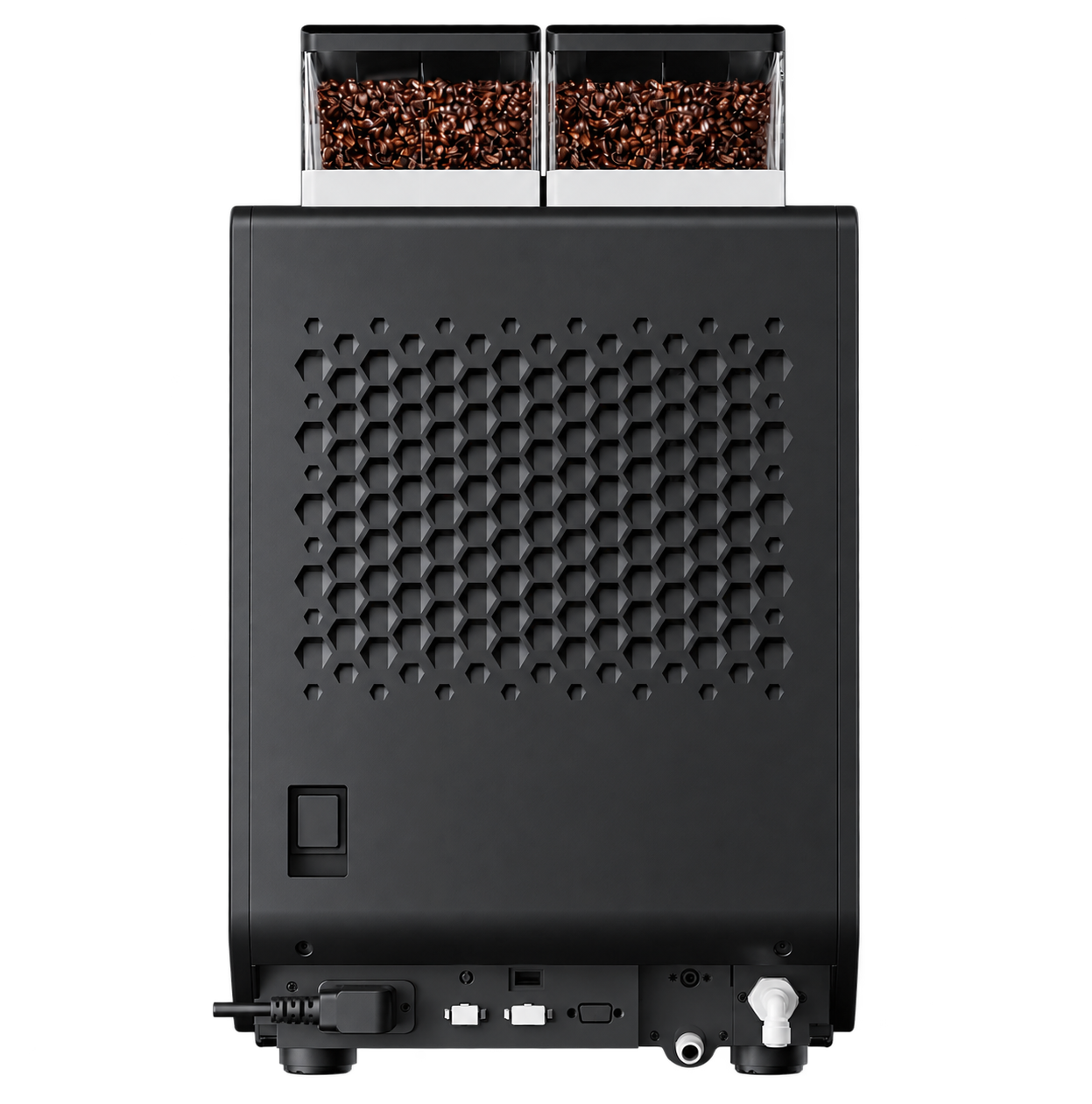

Rear & connections

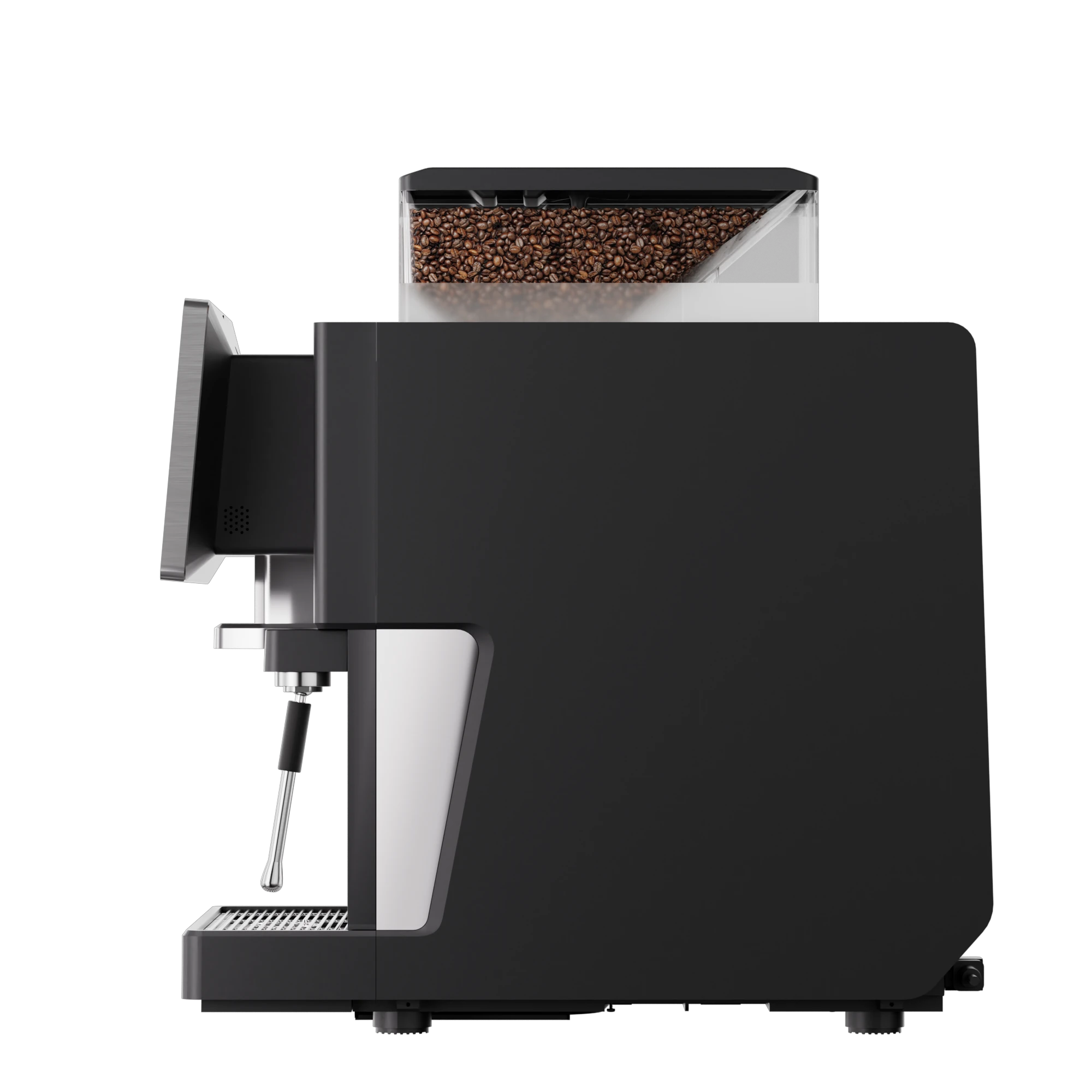

Side view
01 · In action
O Series,
in action.

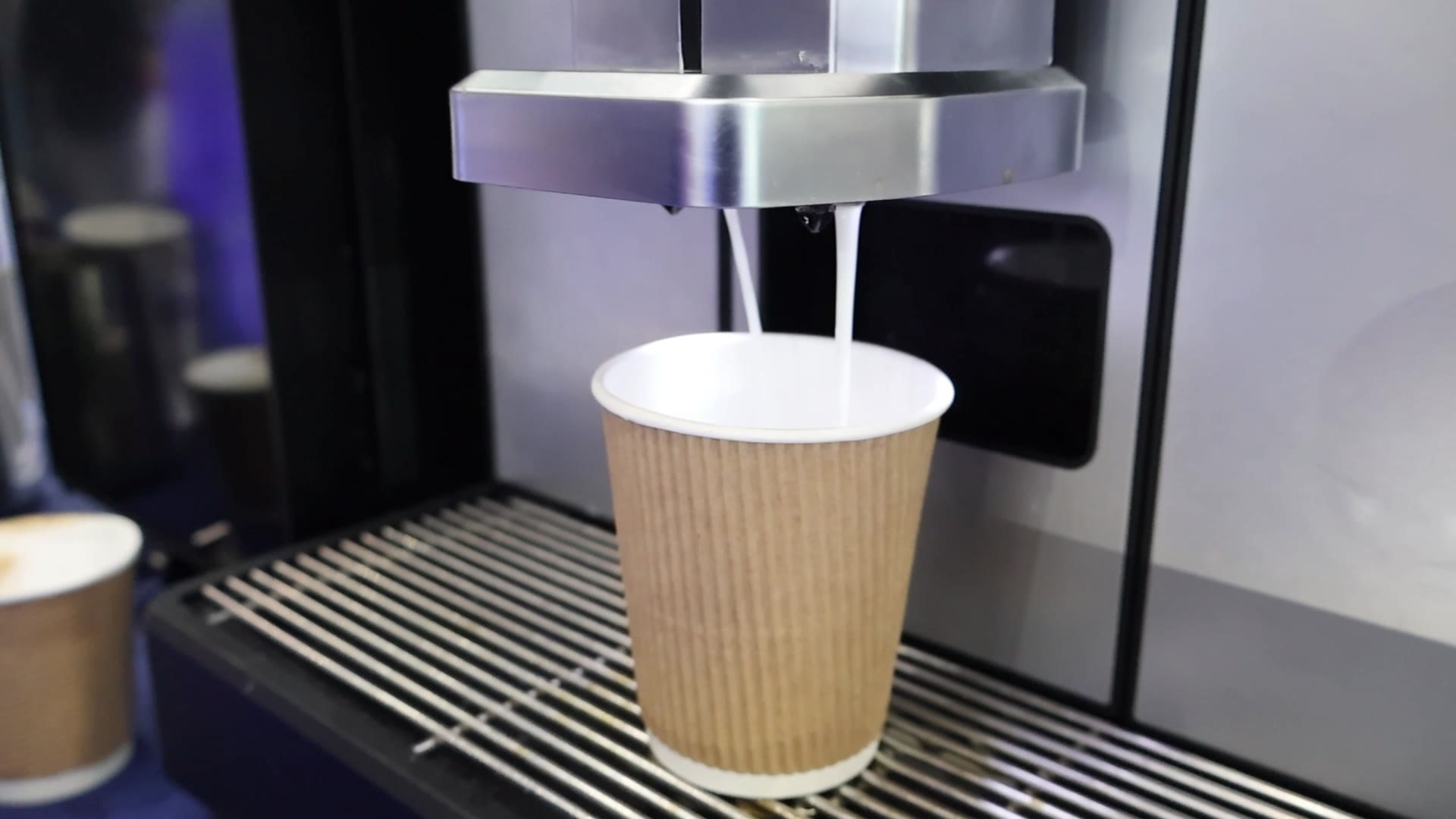

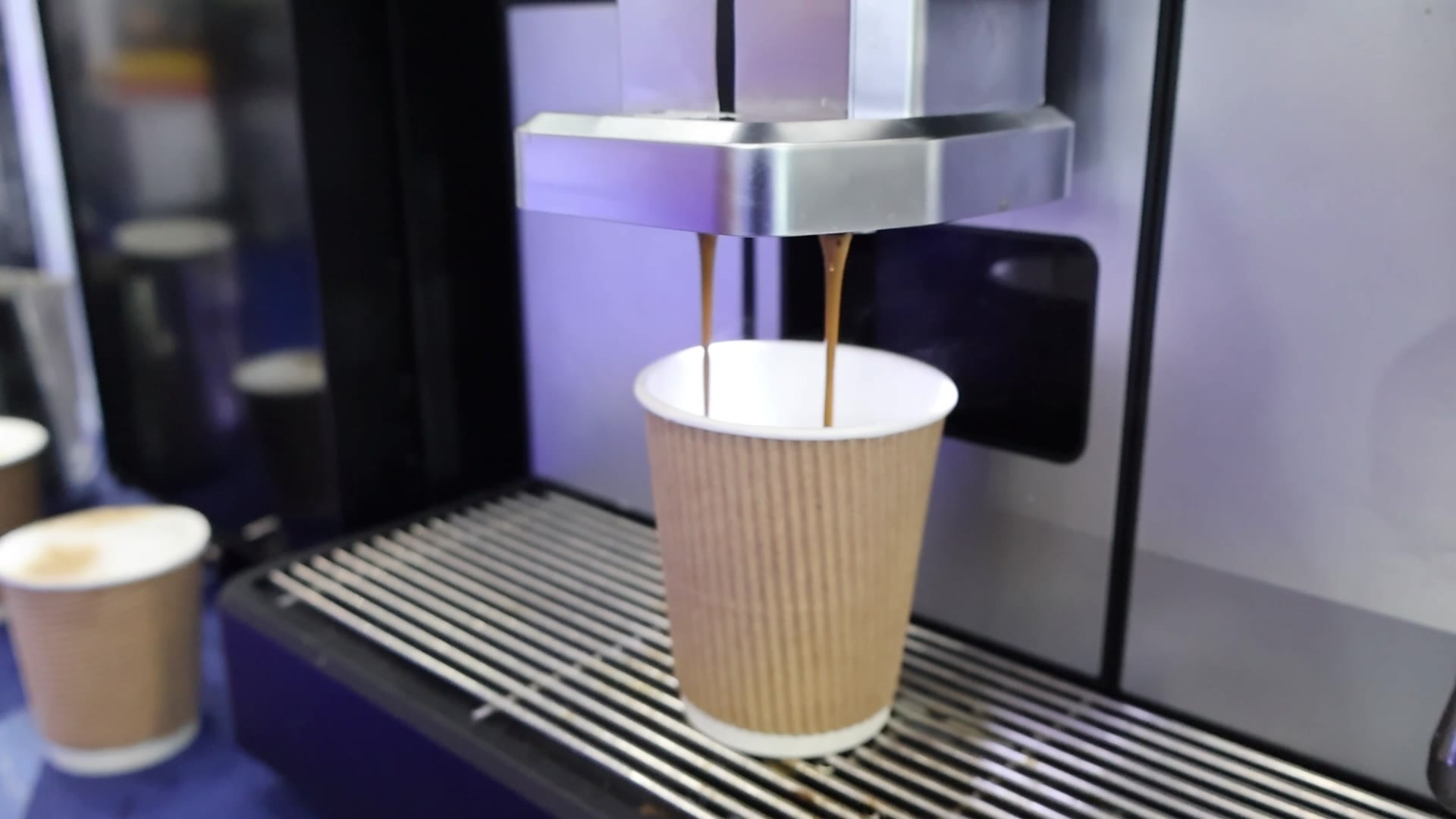

A cappuccino chosen on the Automat touchscreen, then milk foam and coffee into the cup.
02 · Configurations
Three configurations,
one platform.
Choose by the drinks you serve: two coffee beans with fresh milk and a steam wand, or one bean with powder ingredients.
O 203
Two beans, fresh milk and a steam wand.
Bean hoppers
2 × 1,000 g
Powder hoppers
—
Fresh milk
Yes
Steam wand
Yes
O 120
One bean with two powder ingredients.
Bean hoppers
1 × 1,000 g
Powder hoppers
2
Fresh milk
—
Steam wand
—
O 113
One bean, one powder ingredient and fresh milk.
Bean hoppers
1 × 1,000 g
Powder hoppers
1
Fresh milk
Yes
Steam wand
—
Configuration availability for your site is confirmed with the Automat team.
03 · Coffee system
One brewer,
two pressures.
A user-replaceable brewer in 16 g or 22 g capacity extracts at high pressure for espresso and low pressure for filter coffee, heated by two boilers.
1,000 g
Per bean hopper · one or two
16 g / 22 g
User-replaceable brewer
High / low
Pressure · espresso / filter coffee
2
Boilers
04 · Fresh milk
Fresh milk,
coffee and foam together.
On O 203 and O 113, a milk pump serves hot and cold milk and milk foam, and coffee and milk foam can be dispensed at the same time. The milk system cleans itself automatically.
Hot & cold
Milk and milk foam
Milk pump
Fresh-milk system
Automatic
Milk-system cleaning
05 · Touchscreen
Every drink,
one touch away.

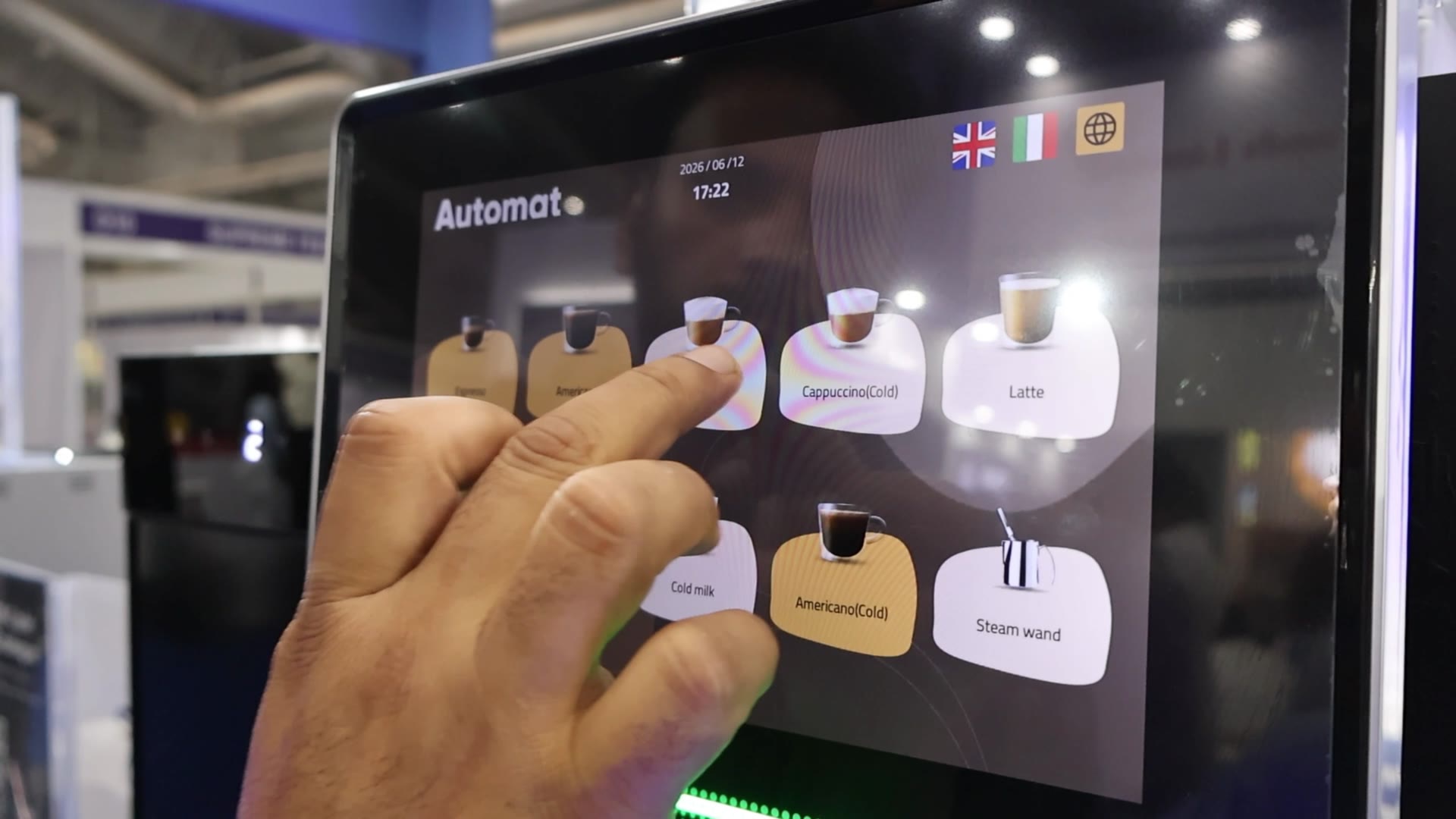

Drinks are chosen on a 10.1-inch colour touchscreen running the Automat interface. On two-bean O 203, the bean hopper can be chosen for each drink.
10.1-inch
Colour touchscreen
Per drink
Bean hopper choice · O 203
06 · Cleaning
Cleaning,
in one click.
One-click self-cleaning and clean-in-place, alongside automatic cleaning of the milk system.
One click
Self-cleaning
In place
Clean-in-place
45 pucks
Grounds container
2 L
Drip tray
07 · Water, installation & options
Tank
or mains water.
O Series runs from its 4 L water tank or a plumbed water supply, with bottled water and a filter element as options. IoT digital service and MDB payment are optional.
4 L
Water tank
Plumbed
Mains water supply
Optional
Bottled water · filter element
70–200 mm
Spout height
570 × 325 × 620
mm · D × W × H
30 kg
Net weight
Optional
IoT digital service
Optional
MDB payment
08 · Recommended daily output
200
cups/day
Recommended daily output.
2700 W
Rated power
220–240 V · 50/60 Hz
Voltage / frequency
30 kg
Net weight
09 · Technical specifications
O Series at a glance.
Configurations O 203, O 120 and O 113.
Recommended daily output
200 cups/day
Configurations
O 203 · O 120 · O 113
Dimensions (D × W × H)
570 × 325 × 620 mm
Net weight
30 kg
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
2700 W
Display
10.1-inch colour touchscreen
Bean hoppers
O 203: 2 × 1,000 g · O 120 / O 113: 1 × 1,000 g
Powder hoppers
O 120: 2 · O 113: 1 · O 203: none
Fresh milk
O 203 and O 113
Steam wand
O 203
Milk system
Milk pump · hot and cold milk and foam
Milk-system cleaning
Automatic
Brewer
16 g / 22 g, user-replaceable
Extraction
High pressure (espresso) · low pressure (filter coffee)
Boilers
2
Spout height
70–200 mm
Grounds container
45 pucks
Drip tray
2 L
Water supply
4 L tank or plumbed · bottled optional
Filter element
Optional
Noise level
Below 70 dB
IoT digital service
Optional
MDB payment
Optional
Cleaning
One-click self-cleaning · clean-in-place
O Series · Commercial coffee
Bean-to-cup, configured for your menu.
