High-volume · Commercial coffee
Model Y Pro
Y Premium Series Bean-to-Cup Coffee Machine
Bean-to-cup coffee with fresh milk or milk powder, in three bean-and-powder configurations, chosen on a 10.1-inch touchscreen.
300 cups/day
Recommended daily output
3
Configurations
10.1-inch
Touchscreen
≤60 s
12 oz Americano or latte
Model Y Pro · Machine Gallery
Model Y Pro,
in profile.
Three-quarter view

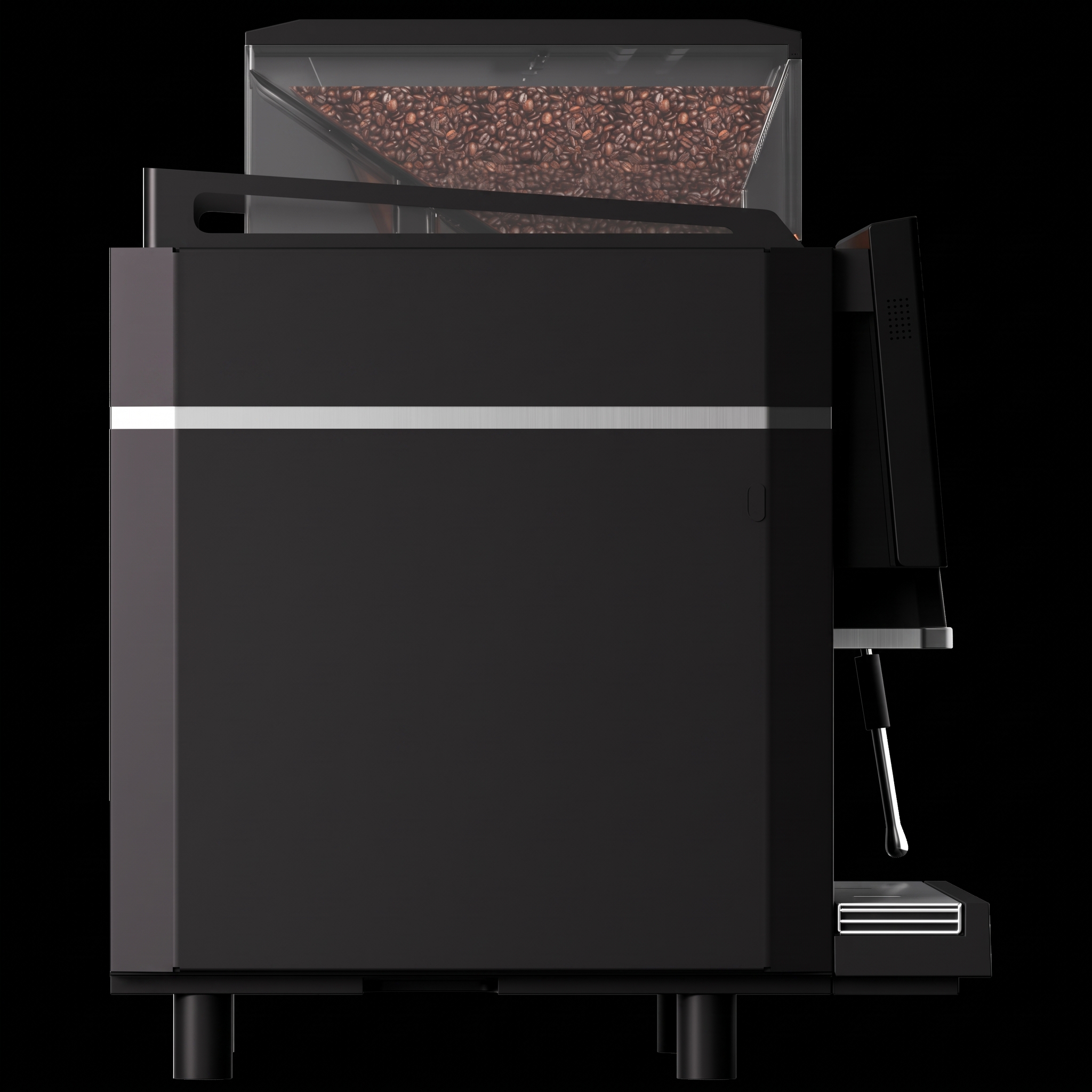

Side view

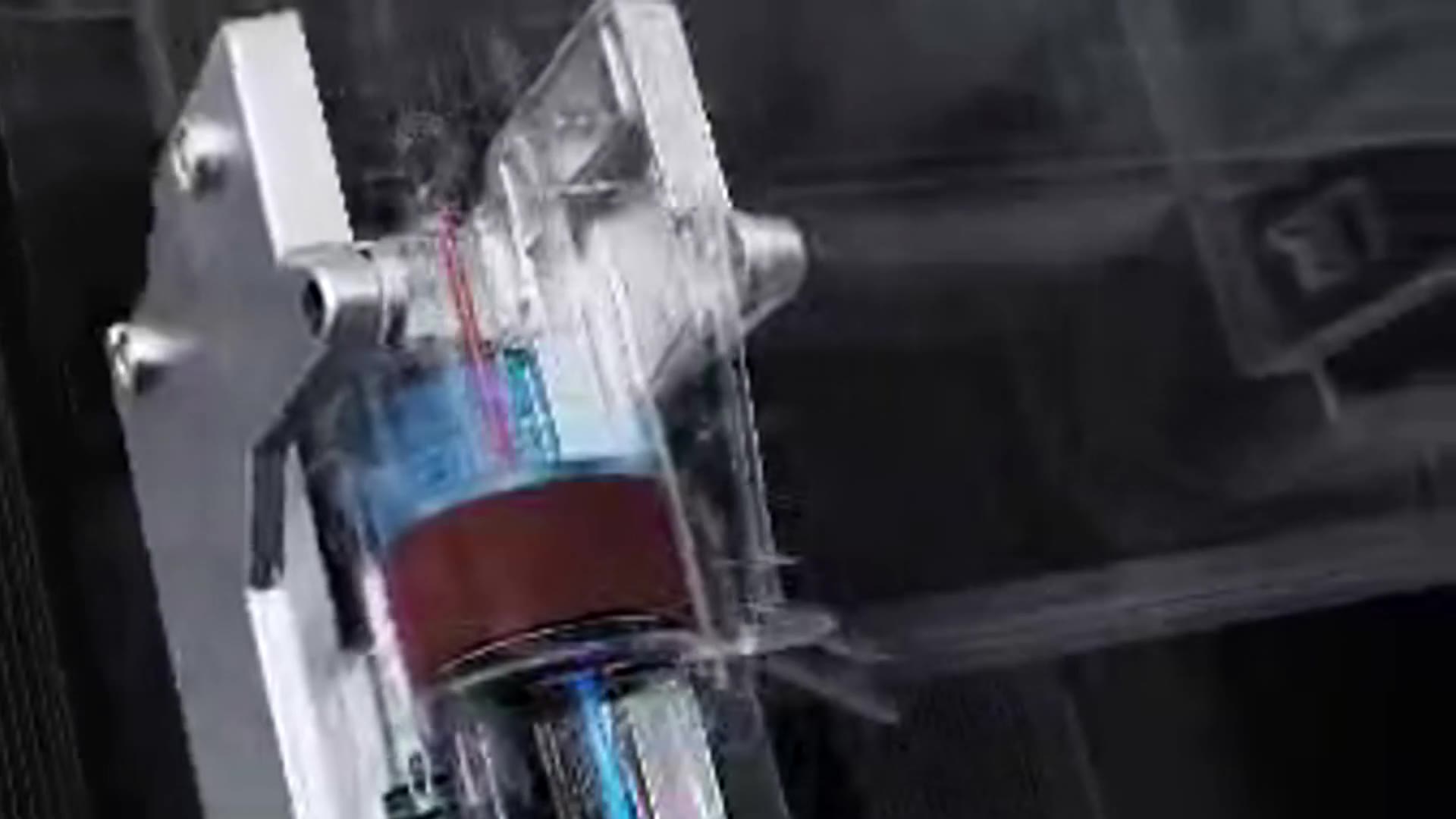

01 · In action
Model Y Pro,
in action.
From the metal flat burrs and brewer to espresso in the cup, milk, and automatic milk-system cleaning.
02 · Configurations
Three configurations,
one platform.
Choose the balance of coffee beans and powder ingredients for your menu. Every configuration serves fresh milk or milk powder.
Y122
One bean with two powder ingredients.
Bean hoppers
1 × 1,200 g
Powder hoppers
1,500 g + 1,200 g
Fresh milk / milk powder
Yes
Steam wand
Optional
Y212
Two beans with one powder ingredient.
Bean hoppers
2 × 1,200 g
Powder hoppers
1 × 1,200 g
Fresh milk / milk powder
Yes
Steam wand
Optional
Y222
Two beans with two powder ingredients.
Bean hoppers
2 × 1,000 g
Powder hoppers
2 × 1,200 g
Fresh milk / milk powder
Yes
Steam wand
Optional
Configuration availability for your site is confirmed with the Automat team.
03 · Coffee system
Built for
busy counters.
Metal flat burrs, a 9–22 g metal brewer and two boilers. A coffee-line purge pump clears residual coffee from the line after every extraction.
Metal flat burrs
Grinder
2
Boilers
After every cup
Coffee-line purge
04 · Milk
Hot, foamed
or cold.
The milk system serves hot milk, hot milk foam and cold milk, from fresh milk or milk powder. A separate hot-water wand is standard; a steam wand is optional.
Hot milk
Hot milk · Hot milk foam
Cold milk
Cold milk drinks
Fresh or powder
Fresh milk or milk powder
Separate
Hot-water wand · steam wand optional
05 · Touchscreen & speed
Every drink,
one touch away.
Drinks are chosen on a 10.1-inch colour touchscreen, and a 12 oz Americano or latte is ready in 60 seconds or less.
10.1-inch
Colour touchscreen
≤60 s
12 oz Americano or latte

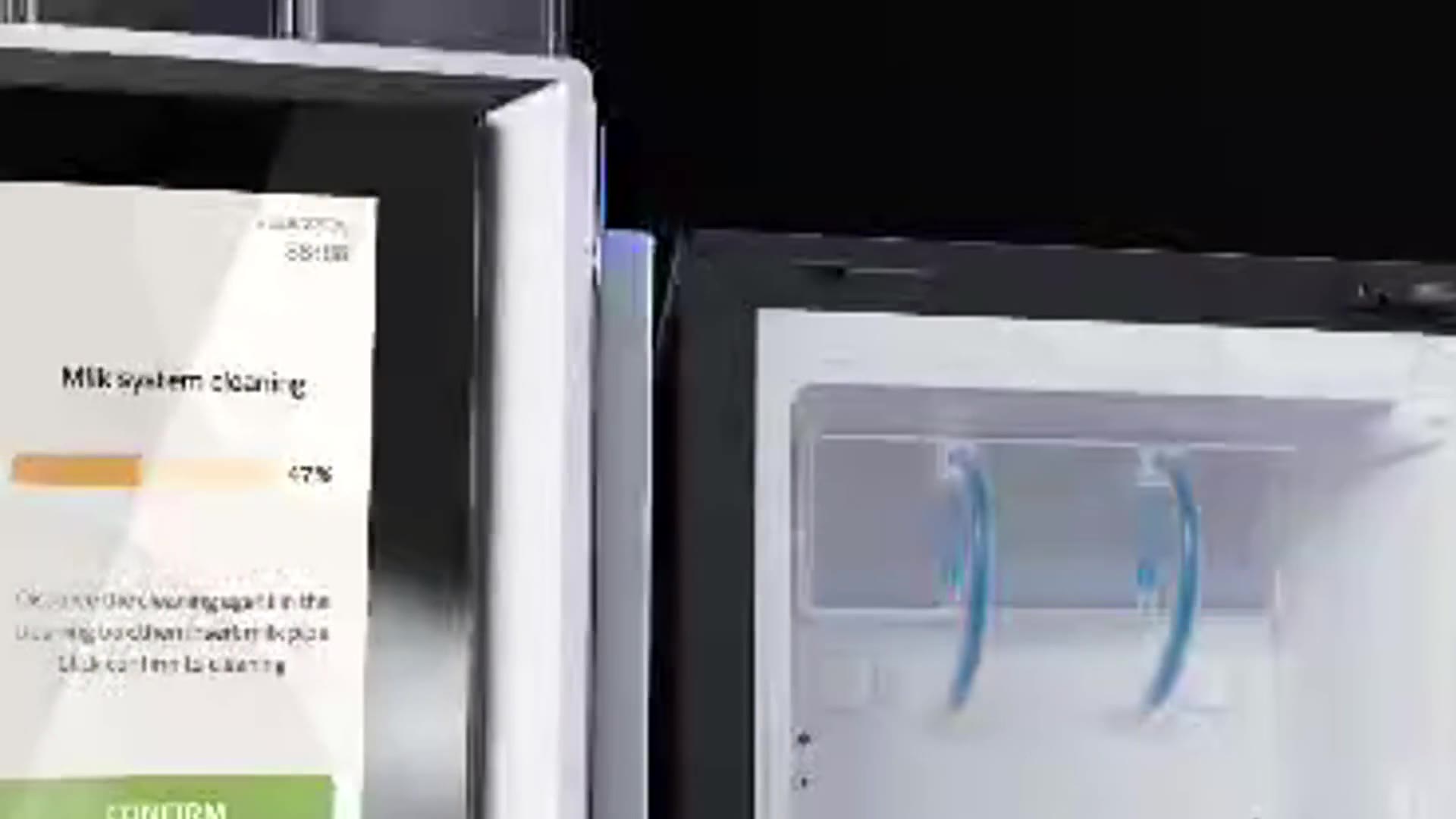

06 · Cleaning
Cleaning,
built in.
The milk and powder system cleans itself automatically, and the coffee line is purged after every extraction.
Automatic
Milk and powder system cleaning
45 pucks
Grounds container
2 L
Drip tray
07 · Water, installation & options
Tank
or mains water.
Model Y Pro runs from its 4 L water tank or a fixed water supply, with bottled water as an option. MDB payment and IoT digital service are optional.
4 L
Water tank
Fixed supply
Mains water
Optional
Bottled water
560 × 380 × 675
mm · D × W × H
Optional
MDB payment
Optional
IoT digital service
08 · Recommended daily output
300
cups/day
Recommended daily output.
2600 W
Rated power
220–240 V · 50–60 Hz
Voltage / frequency
560 × 380 × 675 mm
D × W × H
09 · Technical specifications
Model Y Pro at a glance.
Configurations Y122, Y212 and Y222.
Recommended daily output
300 cups/day
Series
Y Pro · Y Premium
Configurations
Y122 · Y212 · Y222
Dimensions (D × W × H)
560 × 380 × 675 mm
Voltage / frequency
220–240 V, 50–60 Hz
Rated power
2600 W
Display
10.1-inch colour touchscreen
Bean hoppers
Y122: 1 × 1,200 g · Y212: 2 × 1,200 g · Y222: 2 × 1,000 g
Powder hoppers
Y122: 1,500 g + 1,200 g · Y212: 1 × 1,200 g · Y222: 2 × 1,200 g
Grinder
Metal flat burrs
Brewer
9–22 g metal brewer
Boilers
2
Coffee-line purge
After every extraction
Milk
Hot milk · Hot milk foam · Cold milk
Milk source
Fresh milk or milk powder
Hot-water wand
Separate
Steam wand
Optional
Milk / powder system cleaning
Automatic
Grounds container
45 pucks
Drip tray
2 L
Water supply
4 L tank or fixed supply · bottled optional
MDB payment
Optional
IoT digital service
Optional
Americano or latte (12 oz)
≤60 s
Model Y Pro · Commercial coffee
Bean-to-cup, built for busy counters.
