High-volume · Commercial coffee
AT38
Dual-Grinder Fresh-Milk Coffee Machine
Two lockable 1,200 g bean hoppers with two grinders, hot and cold fresh milk, and two 1,000 g powder canisters, chosen on a 10.1-inch touchscreen.
300 cups/day
Recommended daily output
2 × 1,200 g
Bean hoppers
10.1-inch
Touchscreen
AT38 · Machine Gallery
AT38,
on site.

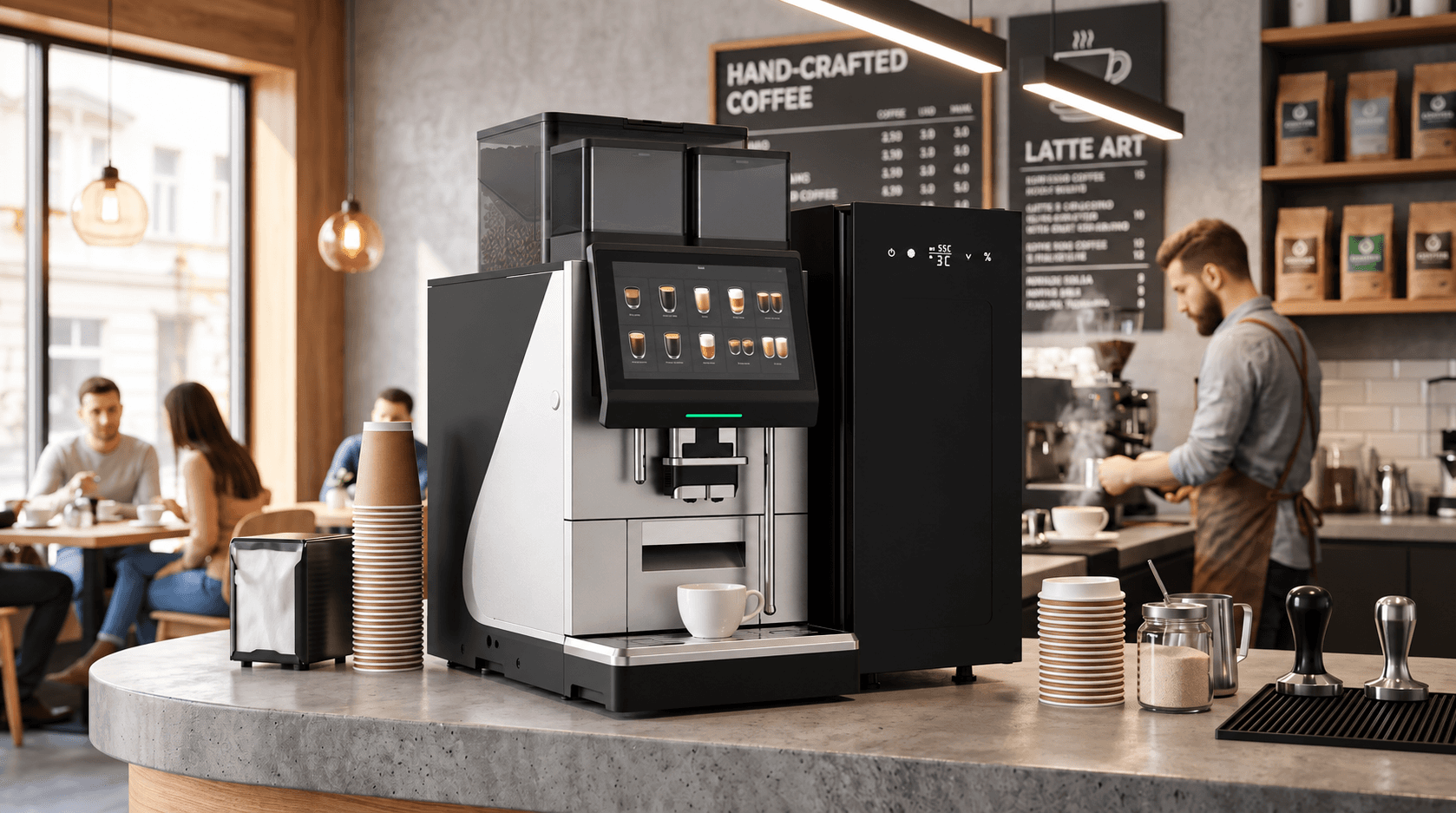

Café

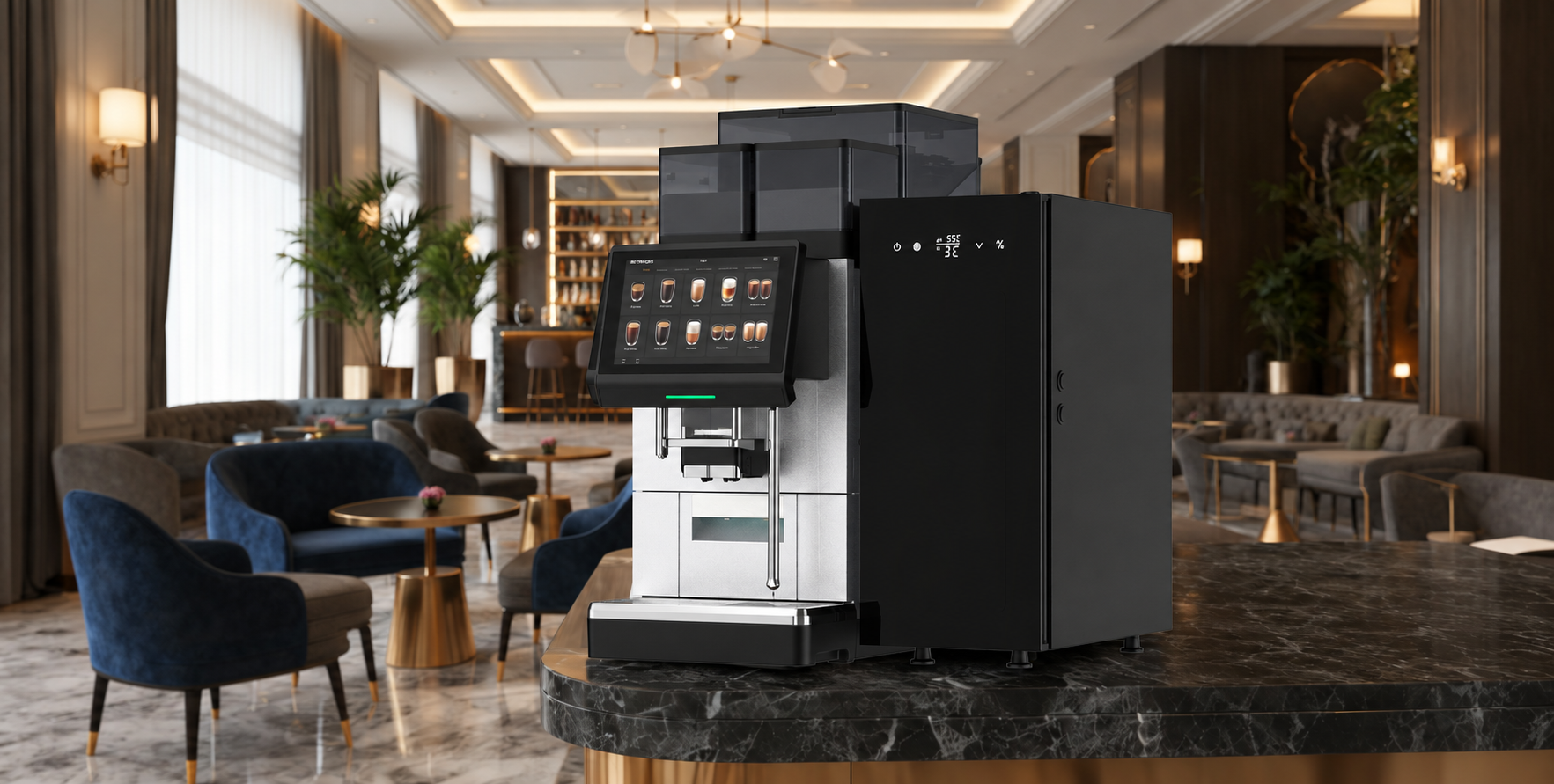

Hotel lounge

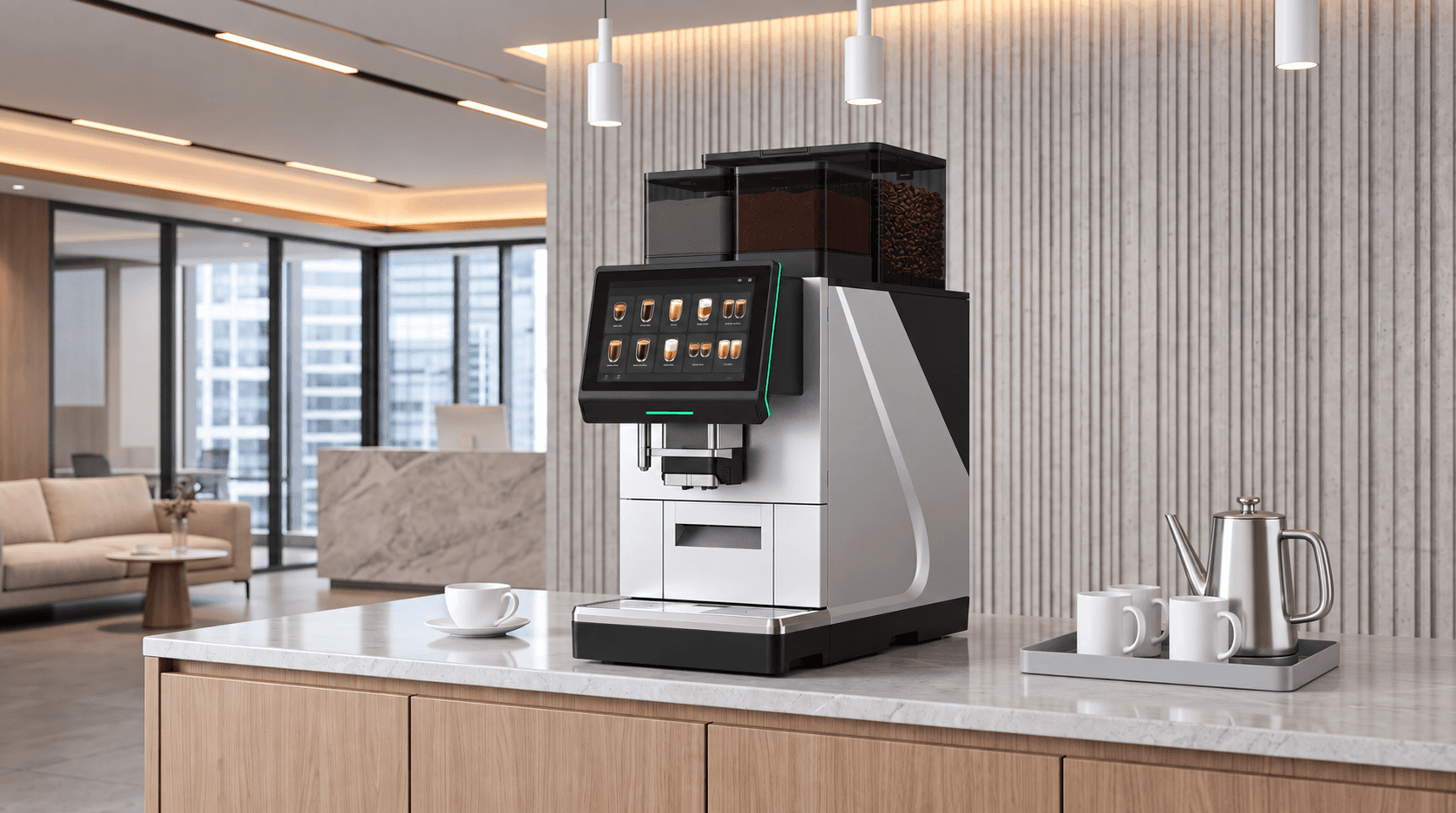

Office
01 · In action
AT38,
in action.

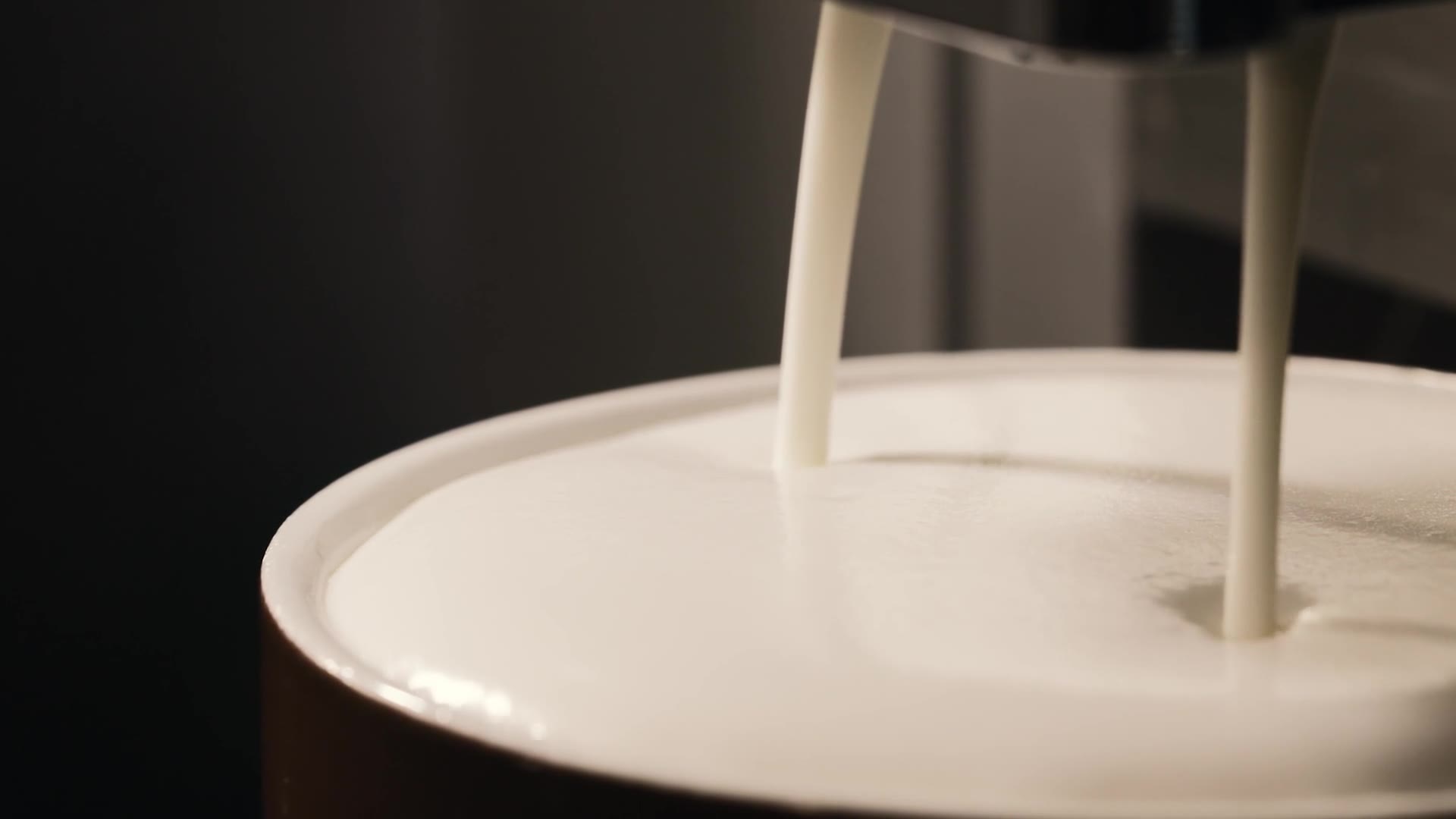

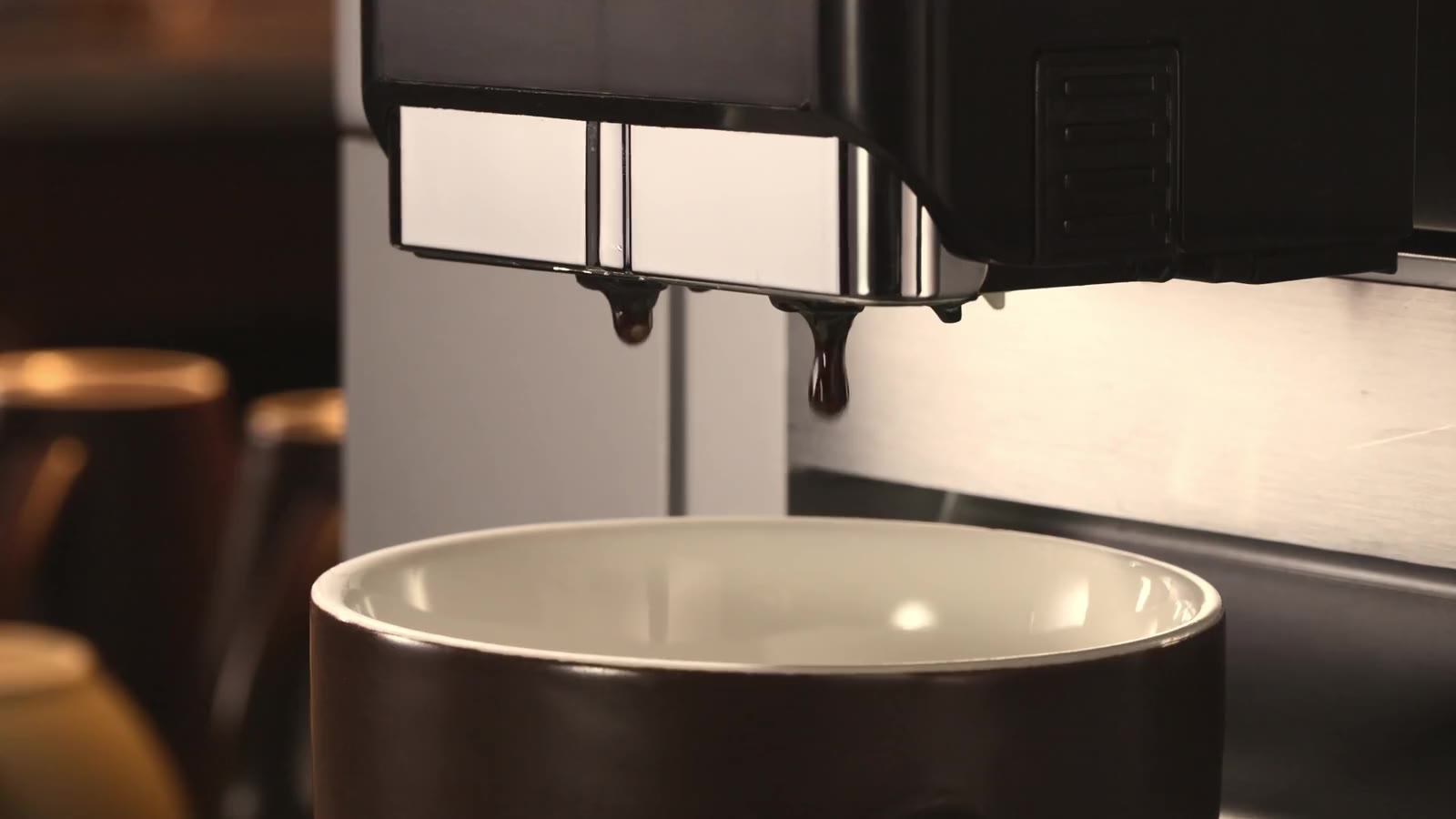

Espresso, fresh milk and the dispensing head, up close.
02 · Coffee system
Two beans,
two grinders.
Two lockable 1,200 g bean hoppers each feed their own 64 mm flat-burr grinder, so two different coffees can be ground independently.
2 × 1,200 g
Bean hoppers · lockable
2 × 64 mm
Flat-burr grinders
Espresso
Brewer

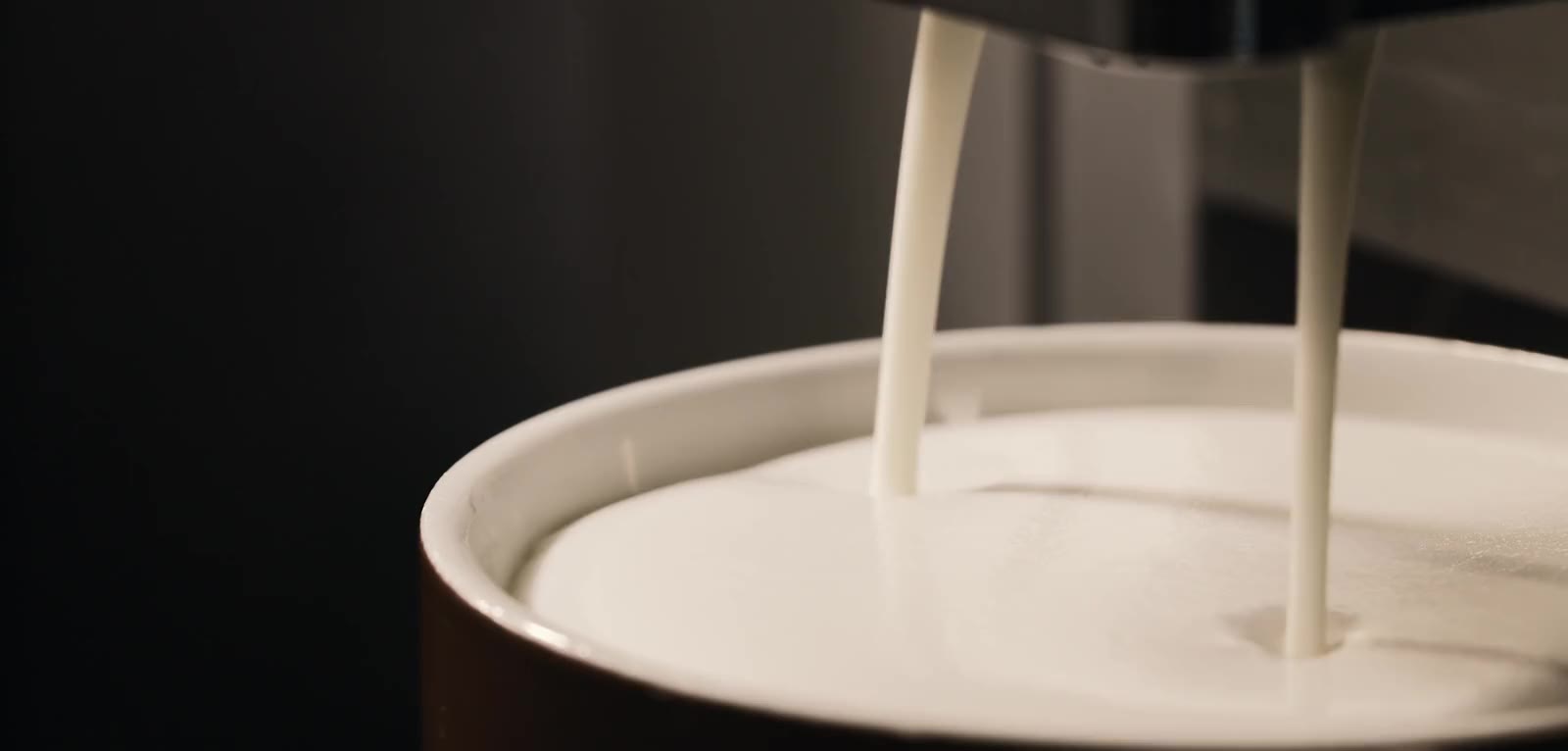

03 · Fresh milk
Hot or cold,
fresh milk and foam.
A dedicated milk pump and foam system serve hot and cold fresh milk and milk foam, and the milk system cleans itself automatically.
Hot & cold
Fresh milk and foam
Milk pump
Dedicated
Automatic
Milk-system cleaning
04 · Powder canisters
More recipes,
beyond coffee.
Two dedicated 1,000 g powder canisters expand the beverage menu with ingredients such as chocolate and vanilla powder.
2 × 1,000 g
Powder canisters · lockable
Chocolate
Powder compatible
Vanilla
Powder compatible
05 · Two boilers, two pumps
Two boilers,
two pumps.
Dual-boiler system for coffee and fresh-milk preparation. A separate hot-water spout serves hot water.
2
Boilers
2 × piston pump
Water pumps
Separate
Hot-water spout
06 · Cleaning
Cleaning,
on a schedule.
The machine cleans at start-up, runs timed cleaning, can clean key modules separately and supports deep cleaning, alongside automatic milk-system cleaning.
Start-up
Cleaning
Timed
Cleaning
Partial
Cleaning
Deep
Cleaning
07 · Water & installation
Bottled
or mains water.
AT38 runs on bottled or mains water. Direct grounds disposal and external drainage are optional.
Bottled or mains
Water supply
80–180 mm
Spout height
312 × 695 × 608
mm · W × H × D
70 pucks
Waste bin · direct disposal optional
1.2 L
Drip tray · external drainage optional
38 kg
Net weight
08 · Recommended daily output
300
cups/day
Recommended daily output.
3100 W
Rated power
220–240 V · 50/60 Hz
Voltage / frequency
38 kg
Net weight
09 · Technical specifications
AT38 at a glance.
Configuration AT38A.
Recommended daily output
300 cups/day
Dimensions (W × H × D)
312 × 695 × 608 mm
Net weight
38 kg
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
3100 W
Display
10.1-inch touchscreen
Bean hoppers
2 × 1,200 g, lockable
Grinders
2 × 64 mm flat burrs
Espresso brewer
Yes
Powder canisters
2 × 1,000 g, lockable
Total ingredient containers
4 (2 bean + 2 powder)
Fresh milk
Hot and cold milk and foam
Milk-system cleaning
Automatic
Boilers
2
Water pumps
2 × piston pump
Hot-water spout
Yes
Spout height
80–180 mm
Waste bin
70 pucks
Drip tray
1.2 L
Water supply
Bottled or mains water
AT38 · Commercial coffee
Two beans, fresh milk, high volume.
