01 · Coffee system
Whole beans,
ground at the machine.

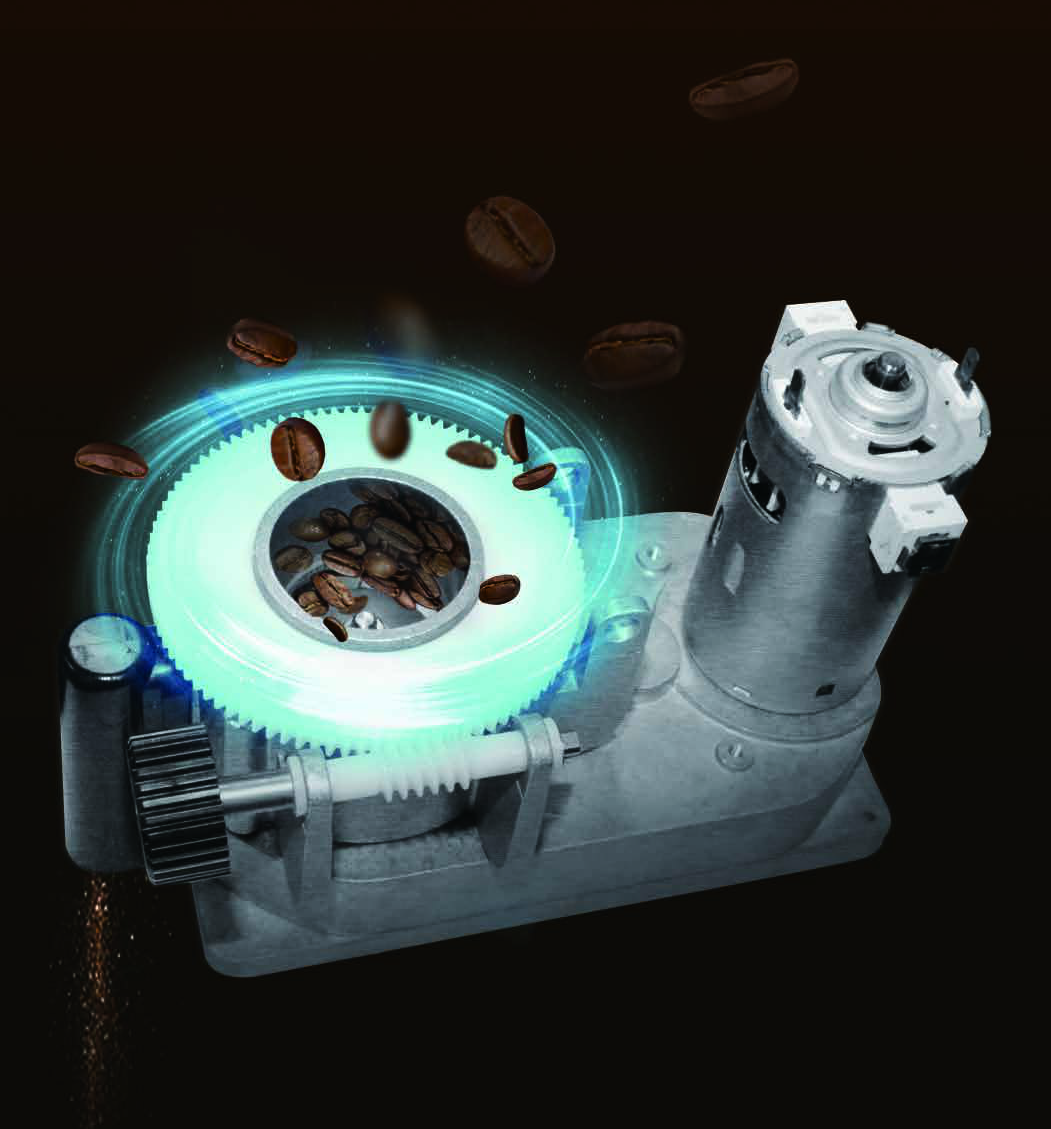

A 1,500 g bean hopper feeds 64 mm special-steel flat burrs. The espresso brewer uses a 20 g chamber, with a 14 g chamber as an option.
1,500 g
Bean hopper
64 mm special-steel flat burrs
Grinder
20 g chamber
Espresso brewer · 14 g optional
02 · Fresh milk
Fresh milk,
foamed at the machine.

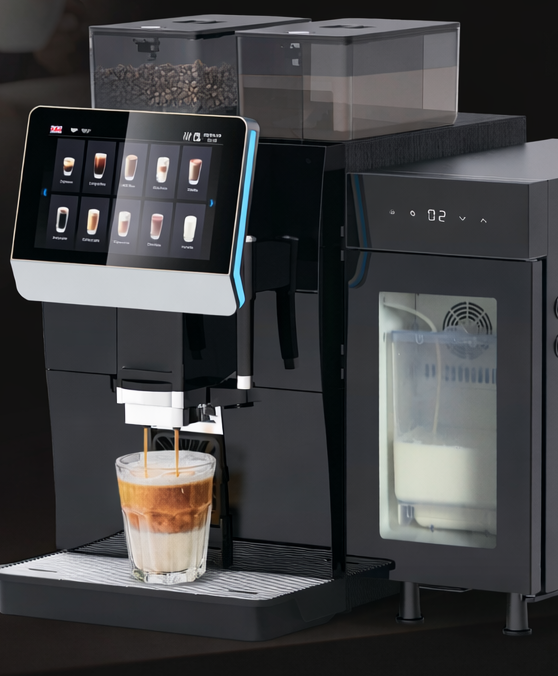

A fresh-milk foam system makes hot milk and milk foam for milk coffees, and the milk path rinses automatically. A 4 L fresh-milk fridge is available as an option.
Fresh-milk foam
Built in
Milk-path rinsing
Automatic
Fresh-milk fridge
Optional, 4 L
03 · Instant canisters
Two canisters,
one mixer.

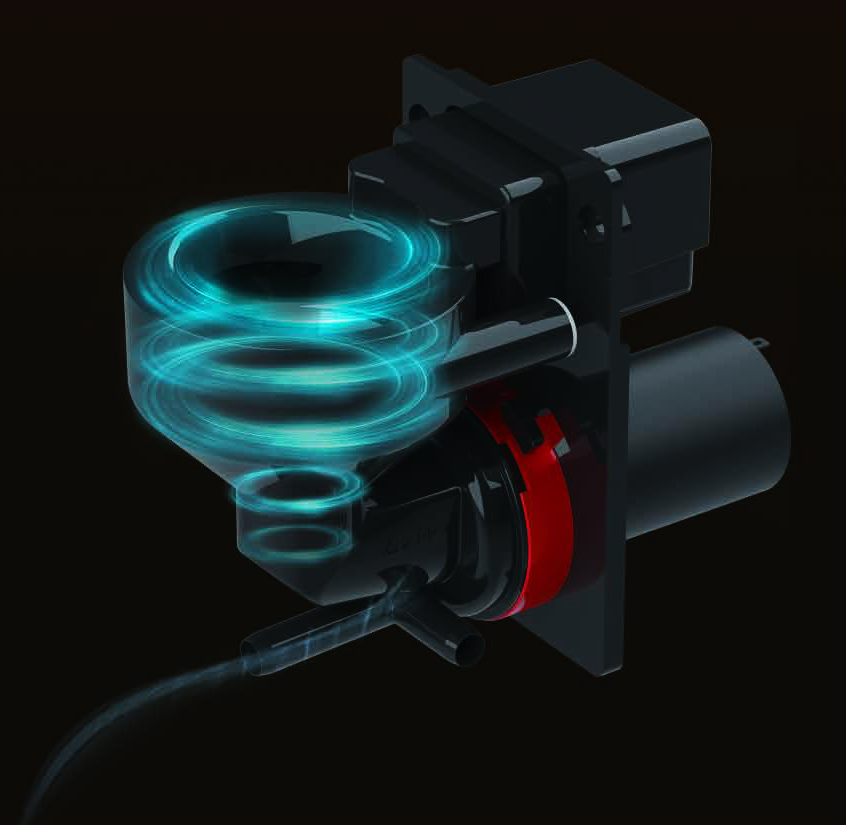

Two instant canisters, 3 L and 2 L, feed a mixer, adding drinks such as mocha and cocoa alongside fresh coffee and milk.
3 L + 2 L
Instant canisters
1
Mixer
15+
Beverages
04 · Hot water & steam
Hot water and steam,
heated separately.

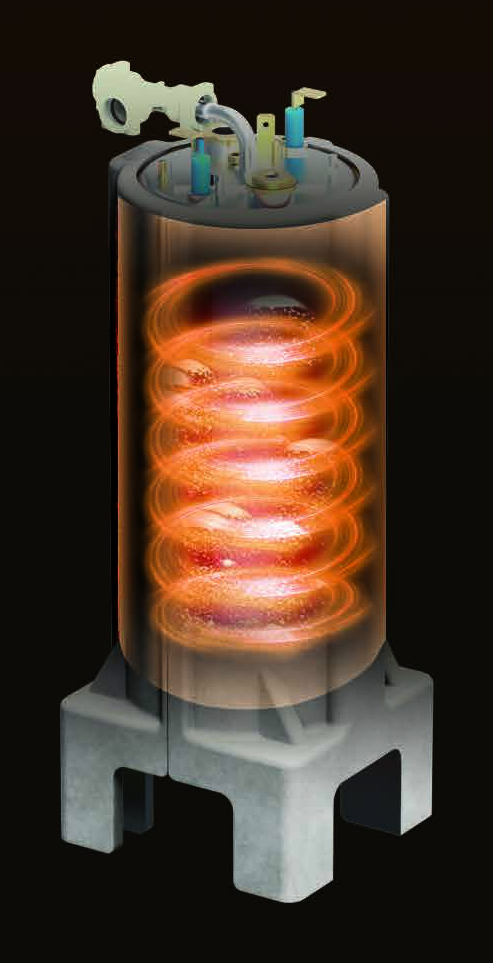

A 700 mL hot-water boiler and a separate steam thermoblock are fed by two piston pumps, with a separate hot-water outlet.
700 mL · 2700 W
Hot-water boiler
1400 W
Steam thermoblock
2 × piston pump
Water pumps
Separate
Hot-water outlet
05 · Cleaning
Cleaning,
on a schedule.
The machine cleans itself at start-up, can clean key modules separately, runs timed cleaning and supports deep cleaning with cleaning agents.
Start-up
Cleaning
Partial
Cleaning
Timed
Cleaning
Deep
Cleaning
06 · Water & installation
Tank, mains
or bottled water.
A built-in 4 L water tank, or a mains or bottled water supply. Direct drainage and direct grounds disposal are optional.
4 L
Built-in water tank
Mains or bottled
Water supply
160 mm
Spout height
350 × 620 × 560
mm · W × H × D
40 pucks
Waste bin · direct disposal optional
0.6 L
Drip tray · direct drainage optional
07 · Recommended daily output
200
cups/day
Recommended daily output.
2900 W
Rated power
220–240 V · 50/60 Hz
Voltage / frequency
30 kg
Net weight
08 · Technical specifications
AT32 at a glance.
Configuration AT32A.
Recommended daily output
200 cups/day
Dimensions (W × H × D)
350 × 620 × 560 mm
Net weight
30 kg
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
2900 W
Display
10.1-inch touchscreen
Beverages
15+
Bean hopper
1,500 g
Instant canisters
3 L + 2 L
Mixer
1
Grinder
64 mm special-steel flat burrs
Espresso brewer
20 g chamber (14 g optional)
Hot-water boiler
700 mL, 2700 W
Steam heater
1400 W thermoblock
Water pumps
2 × piston pump
Separate hot water
Yes
Fresh-milk foam
Yes
Fresh-milk fridge
Optional, 4 L
Spout height
160 mm
Waste bin
40 pucks (8 g)
Drip tray
0.6 L
Water supply
4 L tank, mains or bottled
AT32 · Commercial coffee
Fresh beans, fresh milk, instant canisters.
