01 · In action
AT31B,
in service.

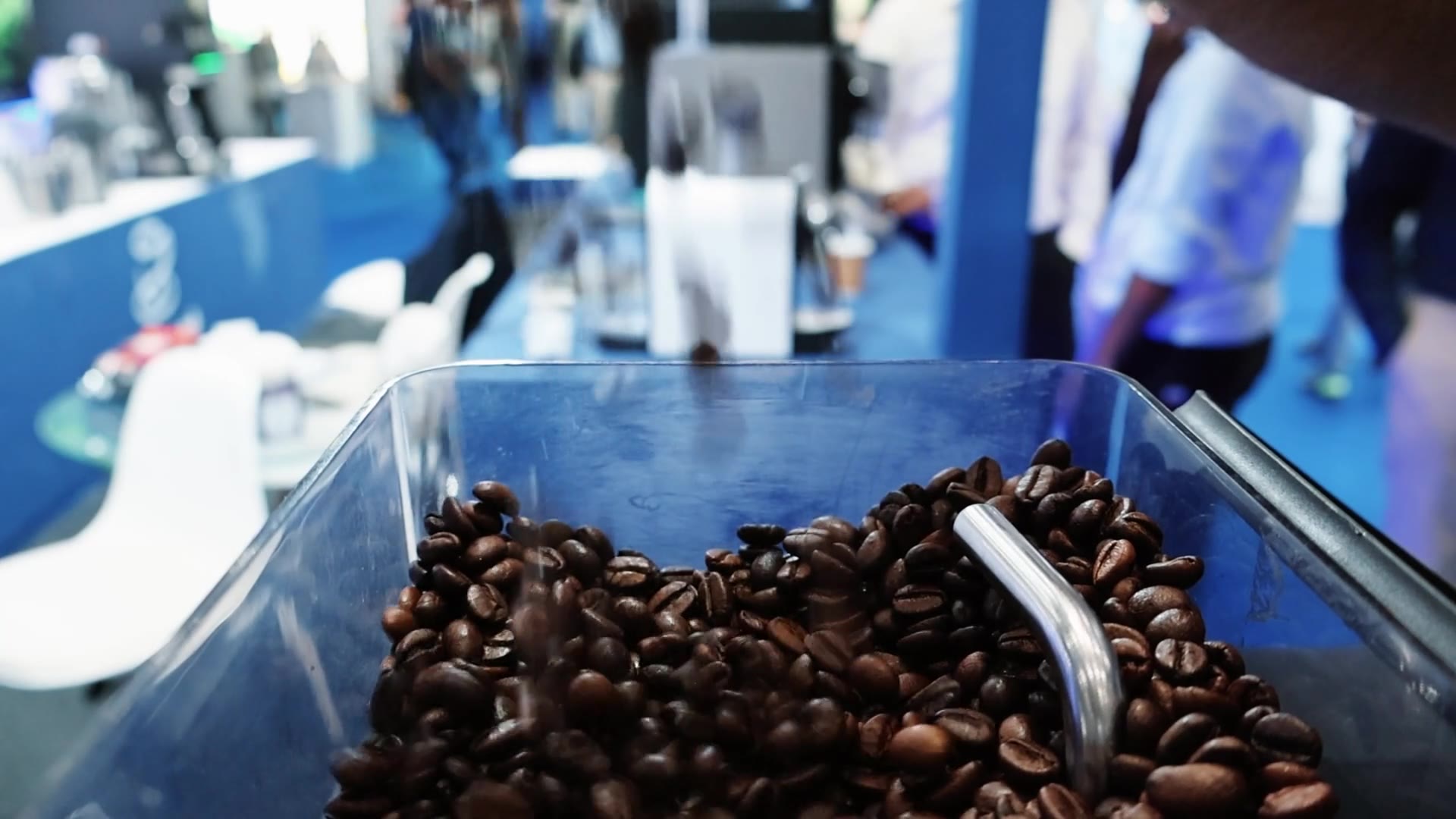

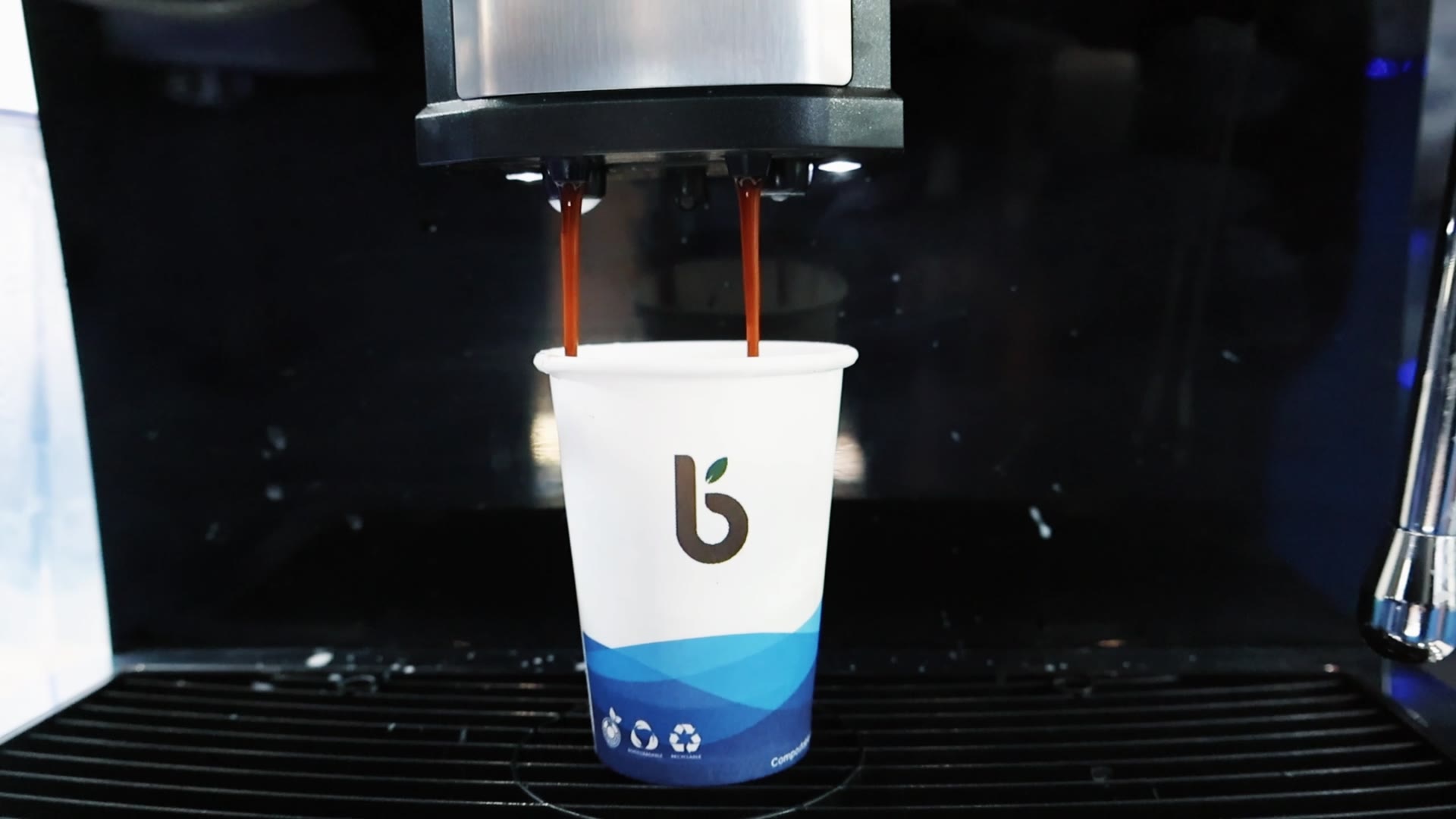

Footage of AT31B on the Automat stand: beans filled, a drink chosen on the touchscreen, and milk and coffee dispensed.
02 · Fresh milk
Fresh milk,
frothed at the machine.

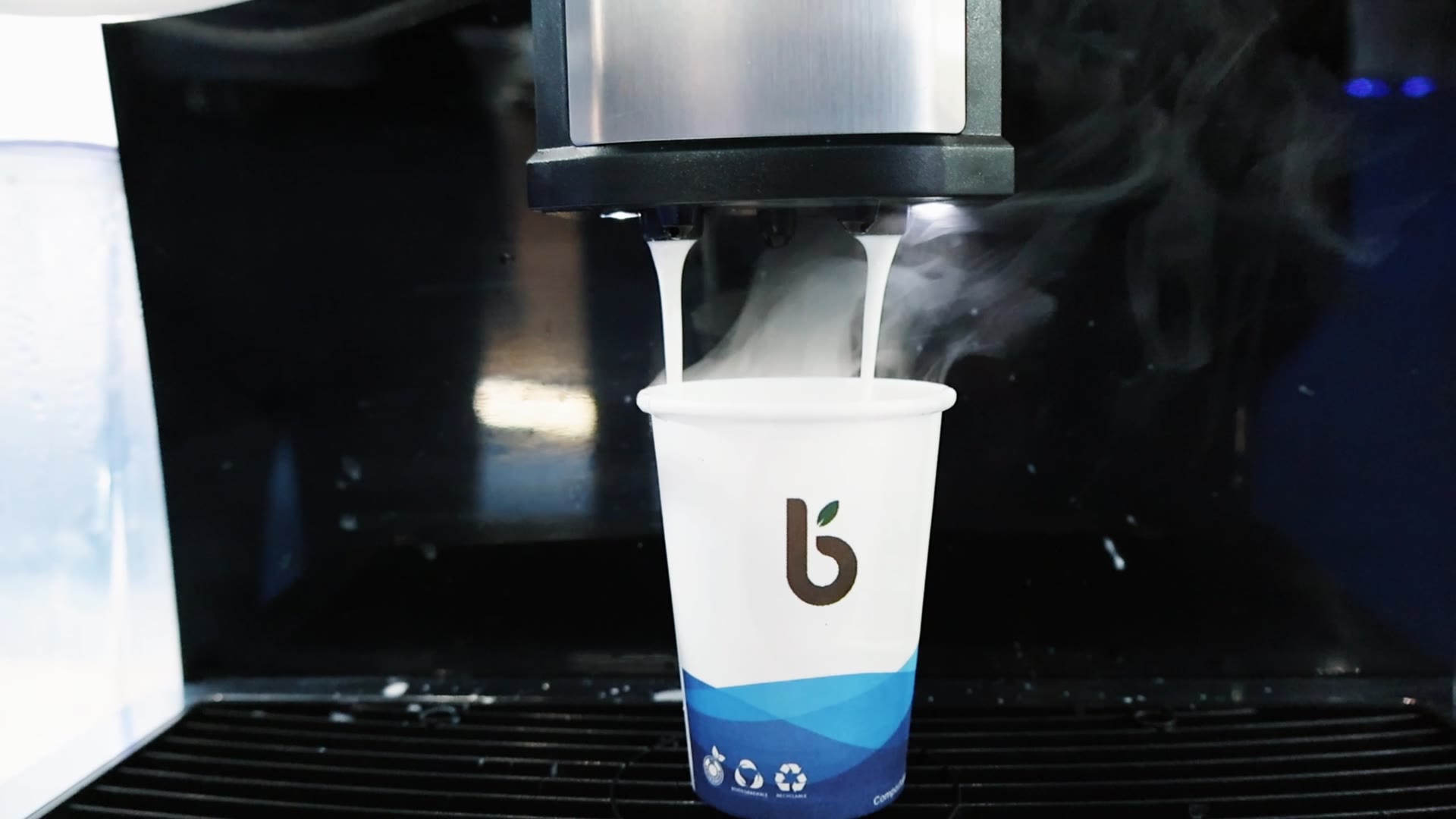

A fresh-milk frother makes milk foam for milk coffees, and a fitted steam wand is there for manual steaming.
Fresh-milk frother
Built in
Steam wand
Fitted
03 · Coffee system
Whole beans,
ground at the machine.

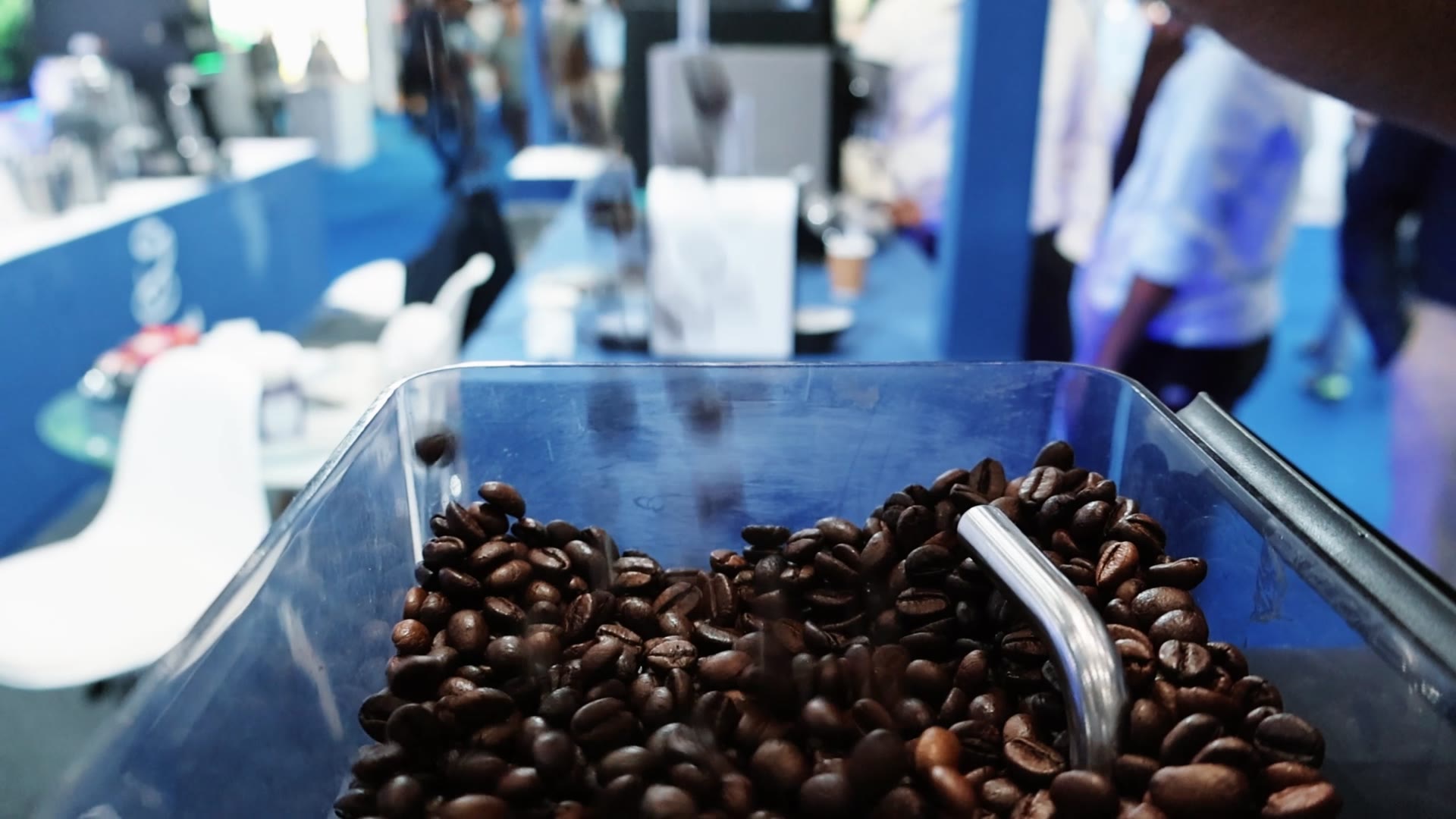

A 1,200 g bean hopper feeds 64 mm special-steel flat burrs with 11 grind settings.
1,200 g
Bean hopper
64 mm special-steel flat burrs
11 grind settings
S14 / S20
Espresso brewer (optional)
04 · Detachable brewer & cleaning
Detachable brewer.
Automatic rinsing.
The brewer detaches in seconds for manual cleaning. Automatic rinsing covers the whole machine, partial cycles, milk-pipe deep cleaning and timed cleaning.
Detachable
Brewer
Full & partial
Automatic cleaning
Milk pipe
Deep cleaning, with cleaner
Timed
Cleaning
05 · Two boilers, two pumps
Hot water and steam,
heated separately.
Two heaters serve hot water and steam separately, and two pumps serve water and fresh milk separately, with a separate hot-water spout.
1500 W
Hot water boiler
1300 W
Steam boiler
2 × piston pump
Water pumps
Separate
Hot-water spout
06 · Touchscreen & connectivity
Choose on a
10-inch touchscreen.

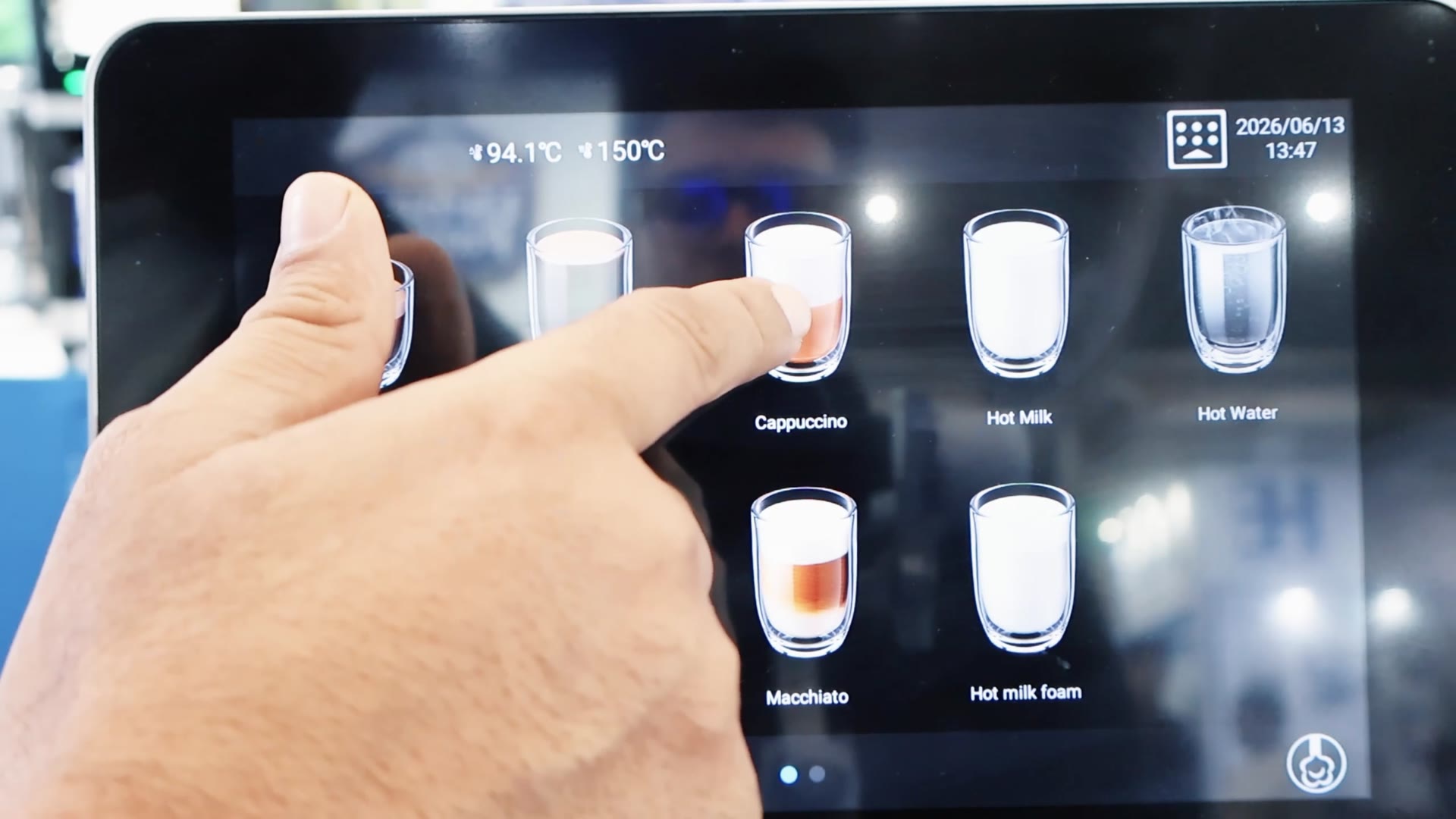

Drinks are selected on a horizontal 10-inch Android touchscreen. Wi-Fi or 4G, MDB or QR code payment and IoT are available as options.
10-inch Android touchscreen
Horizontal
Wi-Fi or 4G
Optional
MDB or QR code payment
Optional
IoT
Optional
07 · Recommended daily output
100
cups/day
Recommended daily output.
2850 W
Rated power
220–240 V · 50/60 Hz
Voltage / frequency
19 kg
Net weight
08 · Water & installation
Tank, barrelled
or mains water.
A 2 L water tank as standard, with an 8 L option, or barrelled or mains water. Direct drainage and direct grounds disposal are optional.
2 L
Water tank · 8 L option
80–160 mm
Spout height
300 × 548 × 490
mm · W × H × D
50 cakes
Waste bin · direct disposal optional
1.0 L
Drip tray · direct drainage optional
09 · Technical specifications
AT31B at a glance.
Configuration AT31B-ES1C-FV.
Recommended daily output
100 cups/day
Dimensions (W × H × D)
300 × 548 × 490 mm
Net weight
19 kg
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
2850 W
Display
10-inch Android touchscreen
Bean hopper
1,200 g
Grinder
64 mm special-steel flat burrs
Grind settings
11
Espresso brewer
S14 / S20 (optional)
Hot water boiler
1500 W
Steam boiler
1300 W
Steam wand
Fitted
Hot-water spout
1
Water pumps
2 × piston pump
Spout height
80–160 mm
Waste bin
50 cakes (10 g)
Drip tray
1.0 L
Water supply
2 L tank (8 L option)
Barrelled / mains water
Optional
Connectivity
Wi-Fi or 4G, optional
Payment
MDB or QR code, optional
IoT
Optional

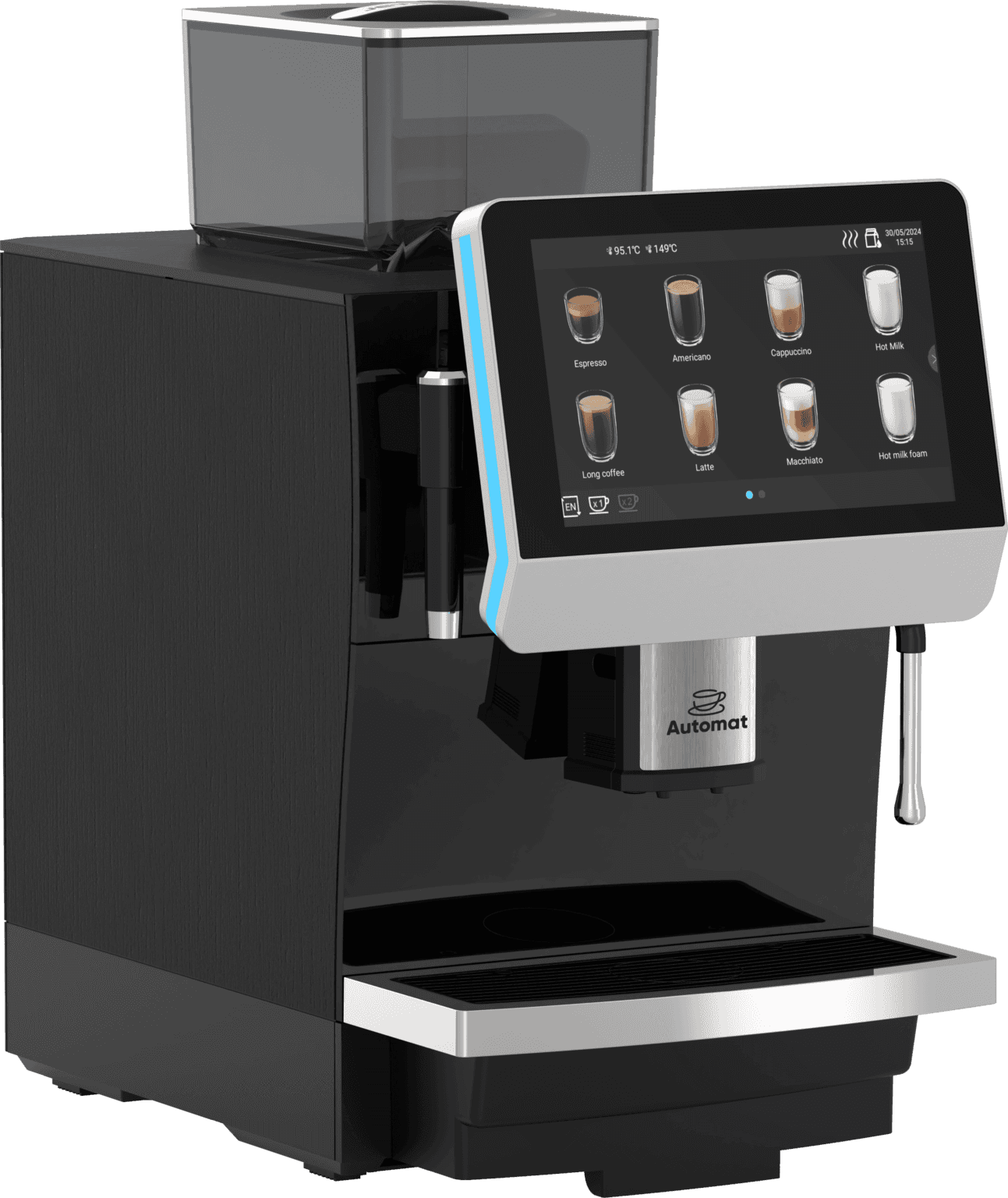

AT31B · Commercial coffee
Bean-to-cup coffee, with fresh milk.
