AT302 · Machine Gallery

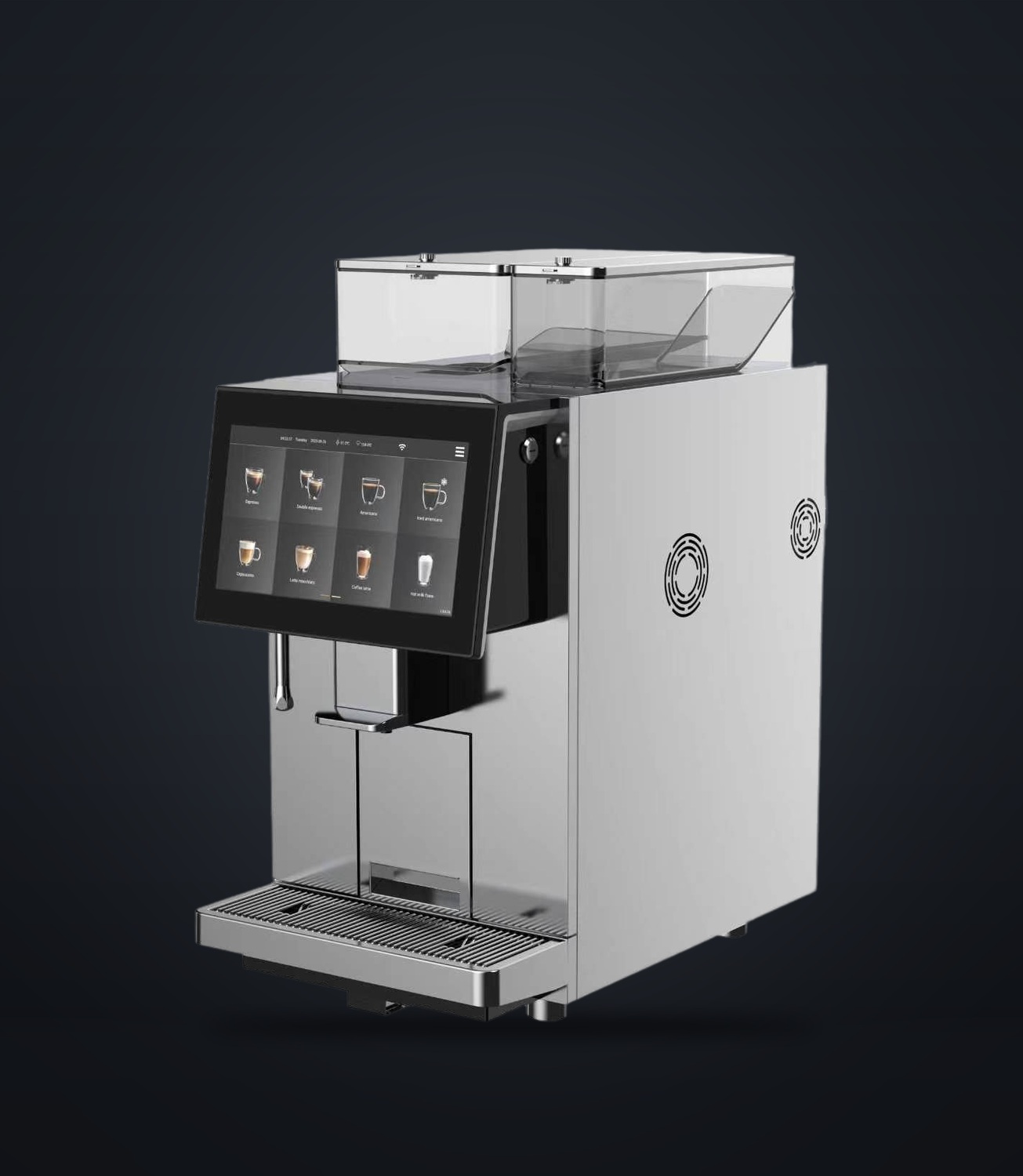

AT302,
in profile.

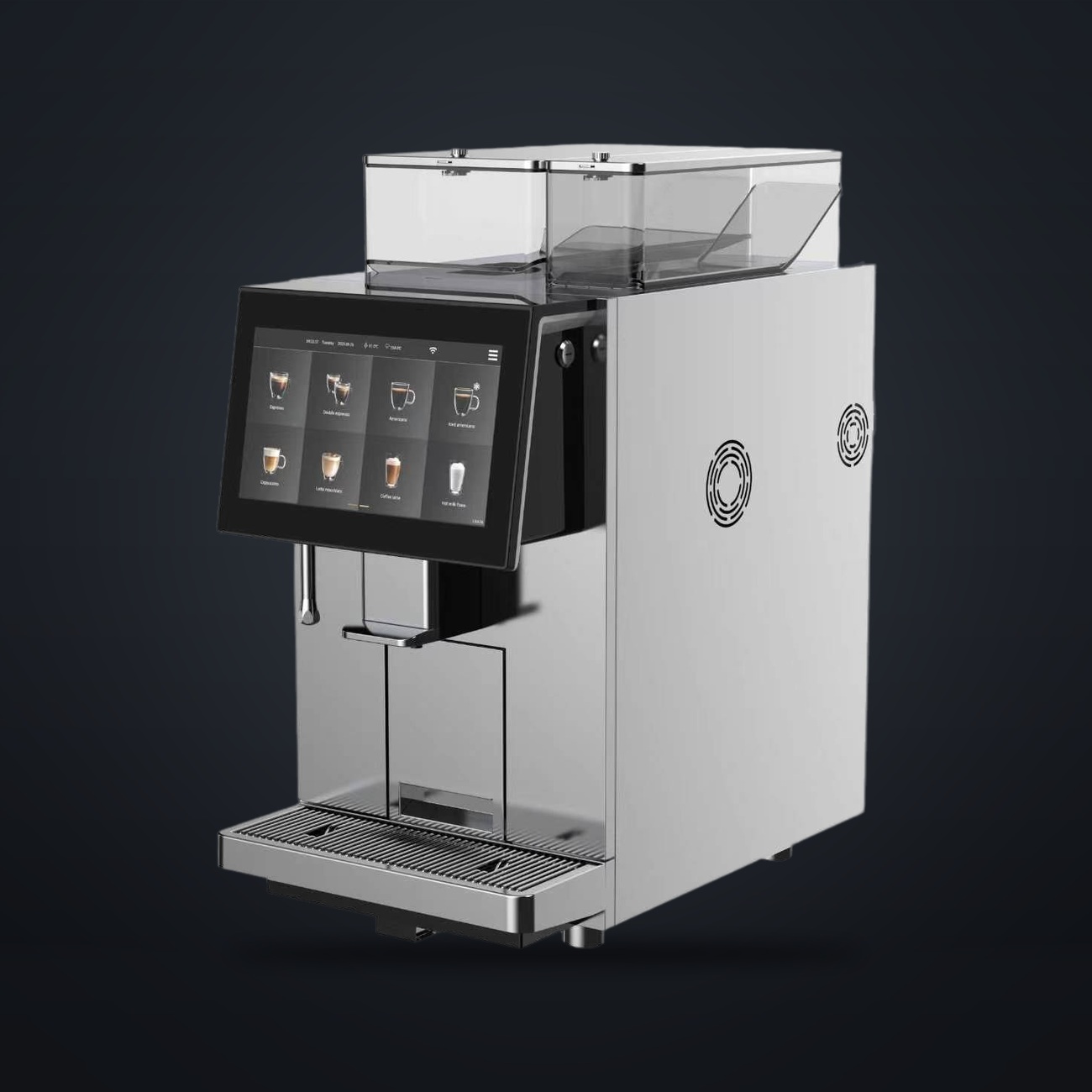

Three-quarter view

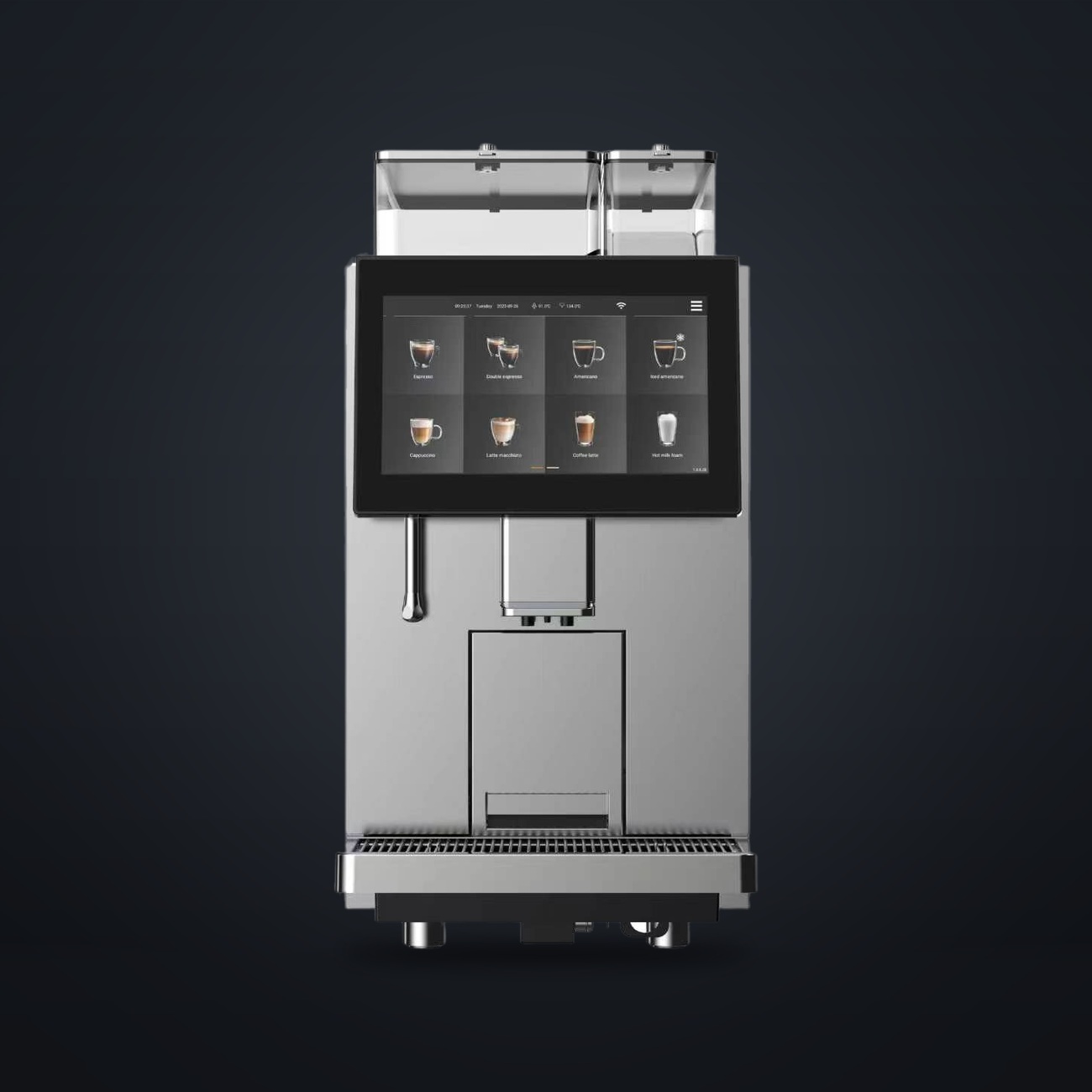

Front view
02 · Coffee system
Three boilers,
working together.
An 8–24 g brewer and three boilers allow brewing, steaming and hot-water supply at the same time.
8–24 g
Brewer
3
Boilers
Simultaneous
Brewing, steaming and hot water
03 · Milk & hot water
Hot or cold
milk foam.
A steam wand for hot milk foam, cold milk foam, and a separate hot-water wand.
Hot milk foam
Steam wand
Cold milk foam
Cold milk drinks
Separate
Hot-water wand
04 · Touchscreen
Every drink,
one touch away.
Drinks are chosen on an 11.6-inch colour touchscreen with a 1440 × 1024 display.
11.6-inch
Colour touchscreen
1440 × 1024
Screen resolution
05 · Cleaning
Cleaning,
built in.
Automatic cleaning keeps the machine ready for service, with a 900 g waste capacity.
Automatic
Cleaning
900 g
Waste capacity
06 · Water, power & installation
Built-in tank,
RO or bottled water.
AT302 runs from its built-in water tank, with RO or bottled water. The stainless-steel body connects to a 16 A socket.
Built-in
Water tank
RO
Water supply
Bottled
Water option
584 × 340 × 755
mm · D × W × H
47.5 kg
Net weight
16 A
Socket
07 · Recommended daily output
300
cups/day
Recommended daily output.
3960 W
Rated power
220–240 V · 50/60 Hz
Voltage / frequency
584 × 340 × 755 mm
D × W × H
08 · Technical specifications
AT302 at a glance.
Single-bean configuration with two powder canisters.
Recommended daily output
300 cups/day
Bean hopper
1 × 2,000 g
Powder canisters
2
Brewer
8–24 g
Boilers
3
Simultaneous operation
Brewing, steaming and hot water
Milk foam
Hot and cold
Steam wand
Yes
Hot-water wand
Separate
Display
11.6-inch colour touchscreen
Screen resolution
1440 × 1024
Cleaning
Automatic
Waste capacity
900 g
Water supply
Built-in tank · RO or bottled water
Voltage / frequency
220–240 V, 50/60 Hz
Rated power
3960 W
Power connection
16 A socket
Dimensions (D × W × H)
584 × 340 × 755 mm
Net weight
47.5 kg
Body
Stainless steel
AT302 · Commercial coffee
Bean-to-cup, built for high volume.
